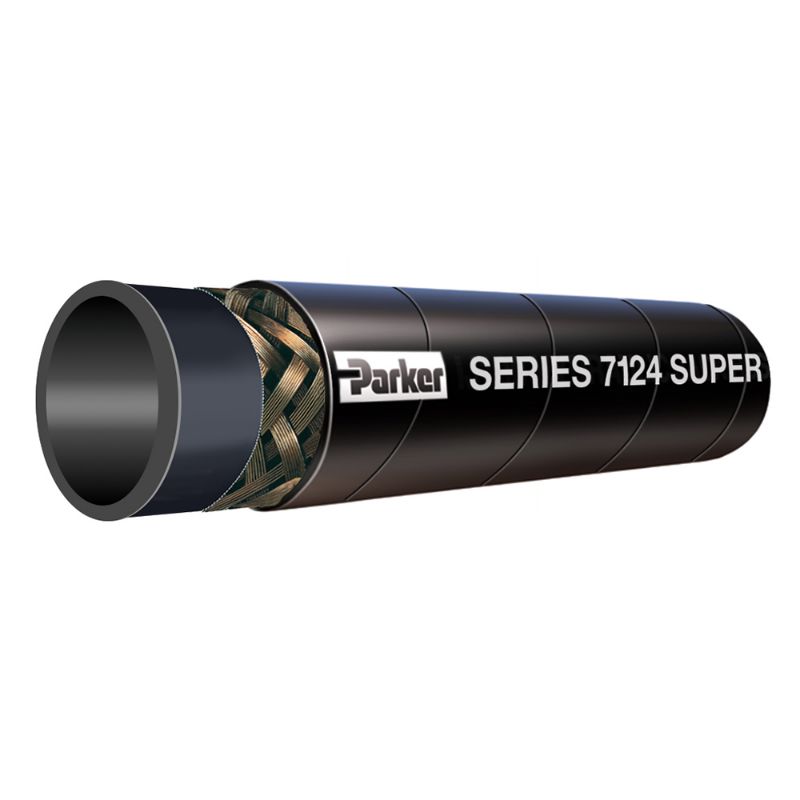

Parker 7124-1001A - SUPER-FLEX® 2000 Semi-Hardwall Gasoline Dispenser Hose, Series 7124

Super-Flex 2000 Semi-Hardwall Gasoline Dispenser Hose is designed to transfer refined fuels from powered dispensers to 180°F and 50 psi, Series 7124

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7124-1001A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Length per Package	500 ft	Maximum Operating Pressure	50 psi
Minimum Bend Radius	5 inch	Cover Color	Black
Maximum Operating Temperature	180 °F	Inside Diameter	25.4 mm
Package Type	Reel	Hose Inner Tube Material	Black
Cover Material	Chloroprene Rubber (CR)	Outside Diameter	1.340 inch
Media	Fuels (Biodiesel to B20 in dedicated service)	Application	Petroleum Transfer
Weight	0.5 lb/ft	Cover Structure	Wrapped
Specifications Met	UL 30, N4 (factory assemblies)	Hose Reinforcement Material	1 Braid of Wire
Maximum Working Pressure (psi)	50	Hose I.D. (inch)	1

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
