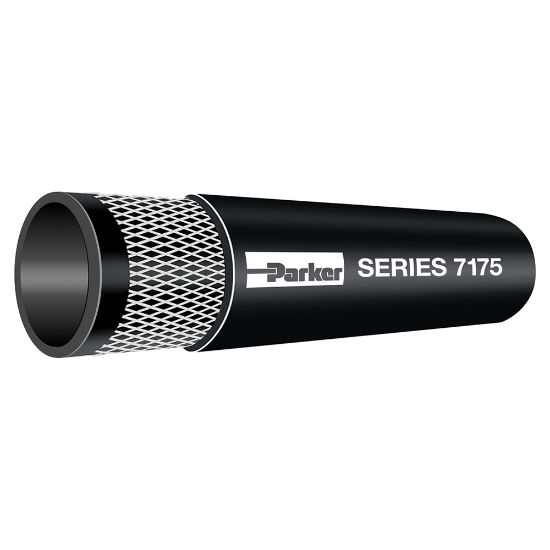

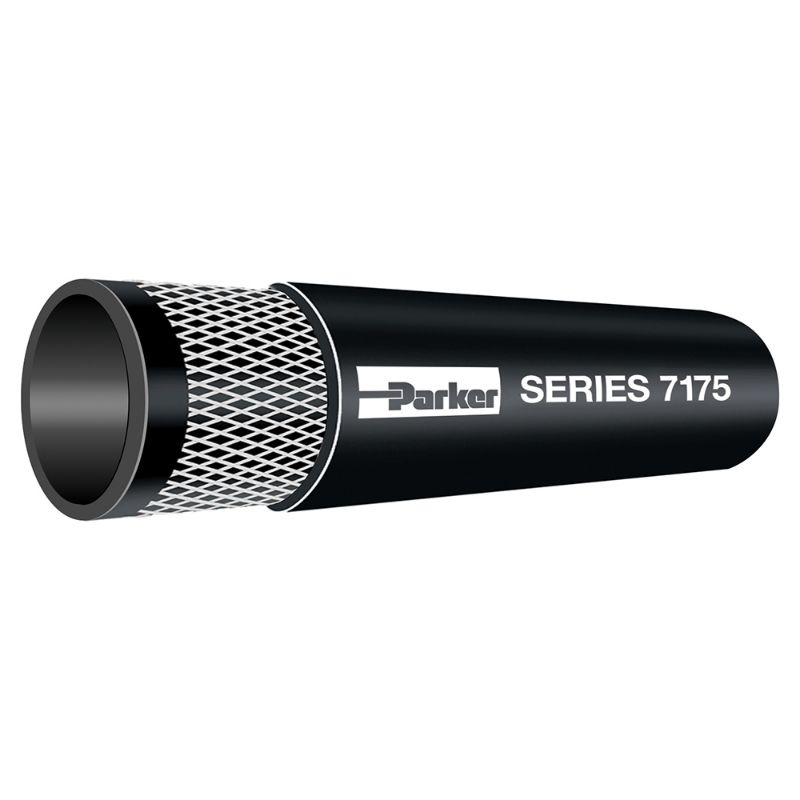

Parker 71751PR-144 - Farm Pump/Gravity Tank Fuel Hose Factory Assemblies - Series 7175

Softwall Farm Pump Hose Factory Assemblies are designed to transfer refined fuels from gravity-feed storage tanks or powered dispensers/pumps to 180°F and 50 psi, Series 7175

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71751PR-144

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40
Specifications Met	N/A	Quantity per Box	5
Minimum Bend Radius	203	Cover Color	Black
Inside Diameter	1	Maximum Operating Temperature	180
Hose Inner Tube Material	Black	Media	Fuels - Check fuel type with our catalogue chart.
Cover Material	Chloroprene Rubber (CR)	Package Type	Carton
Fitting Material	Brass	Application	Petroleum - Dispenser
Maximum Operating Pressure	50	Connection 1 Type	Male NPTF
Connection 2 Type	Male NPTF	Weight	6.39
Outside Diameter	1.4	Hose Reinforcement Material	Multiple Plies of Textile with Static Wire
Hose I.D. (inch)	1	Length (ft)	12

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
