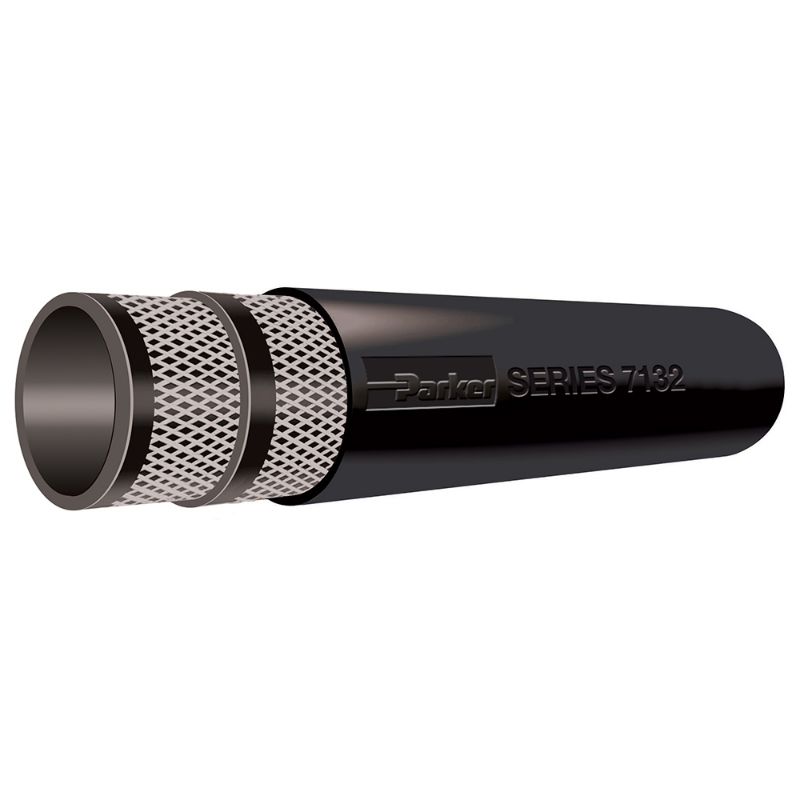

Parker 7132-100354125 - Liquid Petroleum Gas LPG Hose, Series 7132

Liquid Petroleum Gas LPG Hose is designed for delivery, supply and transfer of propane in commercial and industrial applications to 140°F and 350 psi, Series 7132

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7132-100354125

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	350 psi	Cover Color	Black
Maximum Operating Temperature	180 °F	Inside Diameter	25.4 mm
Hose Reinforcement Material	4 Plies of Textile	Weight	0.94 kg/m
Cover Material	Chloroprene Rubber (CR)	Hose Inner Tube Material	Nitrile
Package Type	Carton	Compatible Fitting	7661 Series
Application	Petroleum	Cover Structure	Perforated
Media	LPG	Outside Diameter	38.1 mm
Specifications Met	UL 21.0	Minimum Bend Radius	7.5 inch
Hose I.D. (inch)	1	Standard Pack Qty (ft)	1 x 125
Maximum Working Pressure (psi)	350
