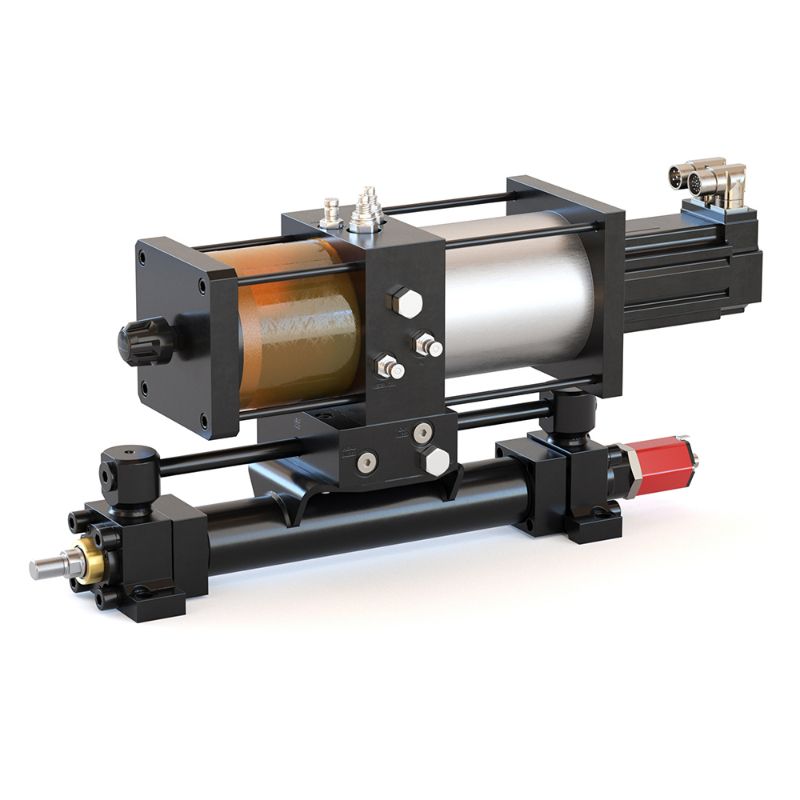

Parker HAS 500 Series_sku - Hybrid Actuation System Cylinders - HAS 500 Series (Americas)

HAS 500 Series’ hybrid design combines the controllability of electromechanical actuators with the durability of a traditional hydraulic system in an all-in-one actuation system that eliminates the need for a hydraulic power unit, hoses and valving.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HAS 500 Series_sku

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Output Power	0.8 to 9.3 HP (Continuous)	For Fluid Type	DuraClean (Std), Fire Resistance, Bio-Degradable and Cold Climate options
Operating Pressure	up to 3000	Division	Cylinder Division
Pressure Relief Setting	up to 3300	Operating Temperature	10 to 165
Product Type	Cylinder Actuator	Mounting Option	19 Standard Styles at various application ratings
Length	Available in any practical stroke length.	Push Force	800
Bore Diameter	2 to 8	Assembly	Welded Construction
Displacement	3	Rated Speed	Varies per Bore Size, up to 6 inch per sec.
Current	Varies per Motor type and size, up to 30 amps (AC), 175 amps (DC).	Product Series	Series HAS 500 Hybrid Actuation System Cylinders
Rod Diameter	0.625 to 5.5	Specifications Met	ANSI (NFPA) T3.6.7R3-2009
Technology	Hydraulics
