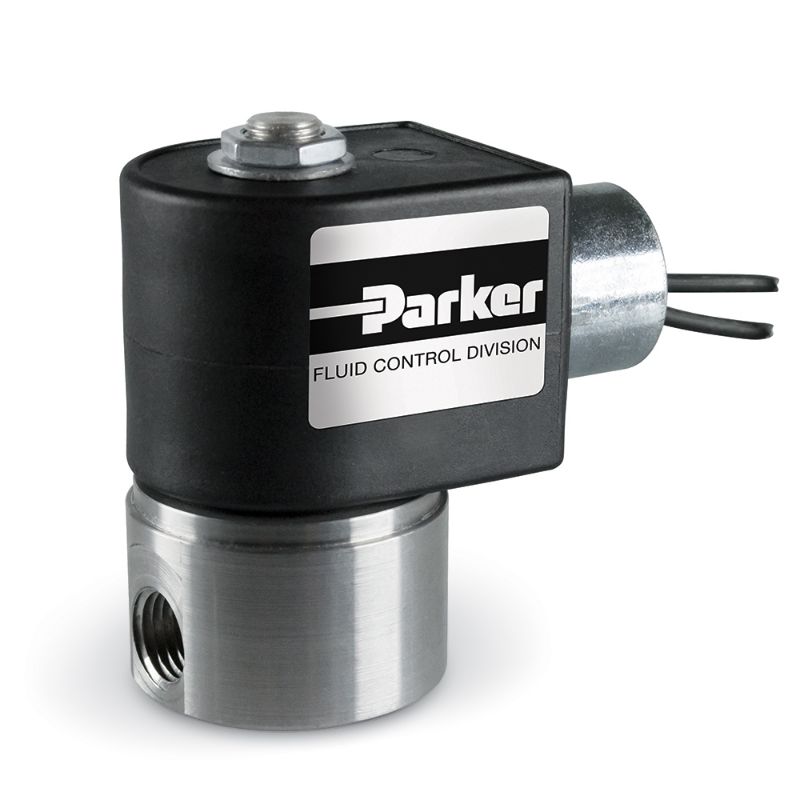

Parker 71216SN2BL00N0C111C2 - 6 Family - Direct Acting High Pressure Valves

These unique needle-in-seat high pressure valves direct-acting valves deliver long life at high pressures thanks to robust fundamentals and technopolymer sealing surfaces. These valves must be mounted upright; with solenoid coils vertical and upright

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71216SN2BL00N0C111C2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Port Size	1/4 inch
Division	Fluid Control Division	Body Material	Stainless Steel
Input Voltage	24.0 VDC	Actuation Type	Direct Acting
Media	General Purpose	Function	Normally Closed
Minimum Pressure Differential	0.0 psi	Insulation Class	Class F
Specifications Met	N/A	Valve Configuration	2 Way
Ingress Protection Rating	NEMA 4,4X	Preventive Maintenance Kit	n/a
Orifice Size	1/32 inch	Coil Type	C111C2
Seal Material	NYLON	Power Consumption	10.0 W
Maximum Fluid Temperature	185.0 °F	Maximum Pressure Differential	3000.0 psi
Installation	IOM 7206	Main Flow Coefficient	0.021 Cv
Maximum Ambient Temperature	150.0 °F	Port Type	NPT
Body Material	Stainless Steel	Media	General Purpose
Function	Normally Closed	Input Voltage	24.0
Insulation Class	Class F	Specifications Met	N/A
Valve Configuration	2 Way	Ingress Protection Rating	NEMA 4,4X
Minimum Pressure Differential	0.0	Coil Type	C111C2
Seal Material	NYLON	Port Size	1/4
Installation	IOM 7206	Orifice Size	1/32
Actuation Type	Direct Acting	Power Consumption	10.0
Main Flow Coefficient	0.021	Maximum Fluid Temperature	185.0
Preventive Maintenance Kit	N/A	Maximum Ambient Temperature	150.0
Maximum Pressure Differential	3000.0
