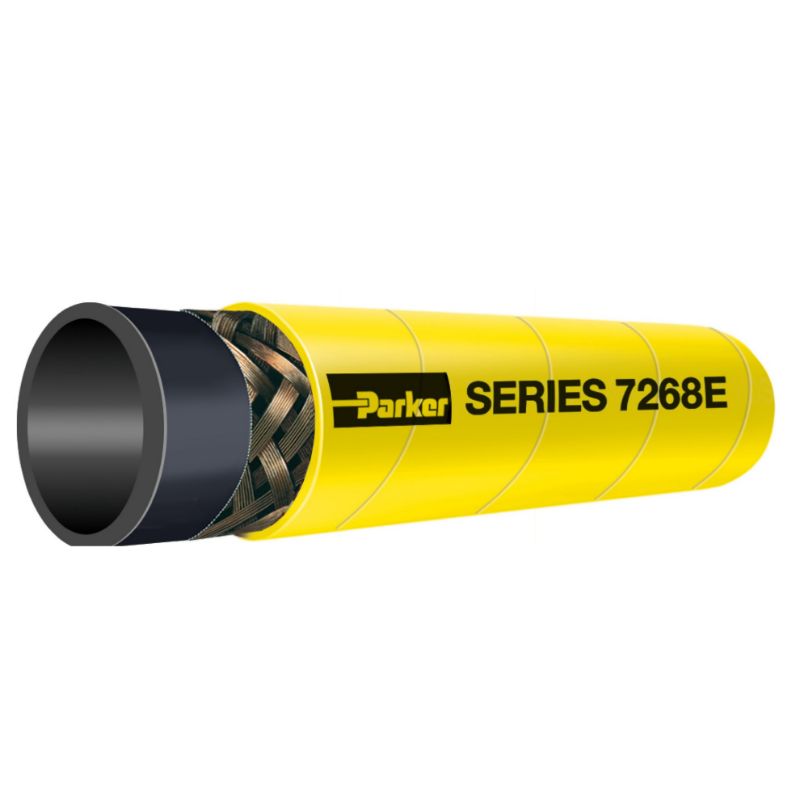

Parker 7268E-1251050 - STINGER™ II High Pressure Wire Braid Multipurpose Oil Resistant Hose, Series 7268E

Stinger II High Pressure Wire Braid Multipurpose Oil Resistant Hose is designed for air, mild chemicals, oil and water in applications to 212°F and 1000 psi, Series 7268E

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7268E-1251050

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Pressure	1000 psi
Media	Water	Maximum Operating Temperature	100 °C
Cover Color	Yellow	Inside Diameter	31.8 mm
Weight	0.67 lb/ft	Hose Inner Tube Material	Nitrile
Specifications Met	MSHA	Minimum Operating Temperature	-20 °F
Hose Reinforcement Material	1 Braid of Wire	Minimum Bend Radius	12 inch
Cover Material	Nitrile	Application	Mild Chemicals
Outside Diameter	41.4 mm	Hose I.D. (inch)	1-1/4
Standard Package Quantity	50 ft
