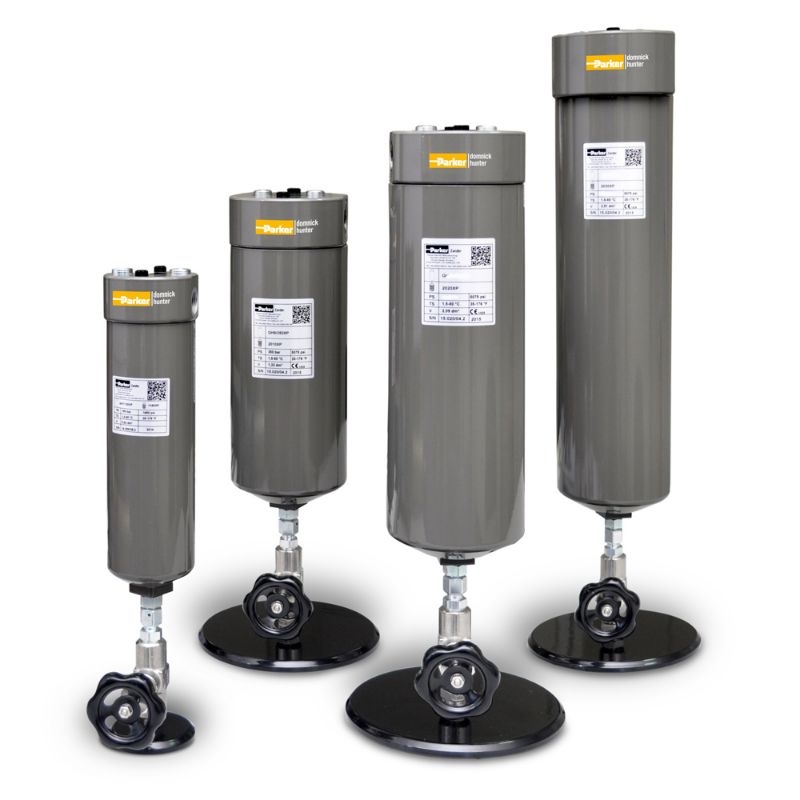

Parker GH3/100A - GH Series High Pressure Compressed Air Filter (for pressures up to 100 bar g)

High pressure filters for compressed air applications up to 100 bar g with optimized flow rates and improved housing design for high energy efficiency, maximum reliability and safe operation.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GH3/100A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Application	Compressed Air and Nitrogen Gas Applications	Division	Gas Separation and Filtration Division EMEA
Product Type	Compressed Air Filter	Element Change Interval	When oil vapour is detected
Weight	2.8 kg	Filter Efficiency Rating	n/a
Width	80.0 mm	Height	355.0 mm
Product Series	GH100	Operating Pressure	100.0 barg Maximum
Specifications Met	PED Fluid Group II, TR	Residual Oil Content	0.003 mg/m³ - 0.003 ppm(w)
Pressure Differential	Saturated: n/a	Materials of Construction	Housing<br/>Aluminum, anodized<br/><br/>Seal<br/>NBR
Micron Rating	n/a	Drain	Manual
Filter Type	Oil Vapour Reduction	Connection Type	½ inch BSPP
Flow Rate	188 m³/hr @ 100 barg (111 cfm @ 1450 psig)	Compatible Element	1050A
Operating Temperature	2 to 50°C (35 to 122°F)
