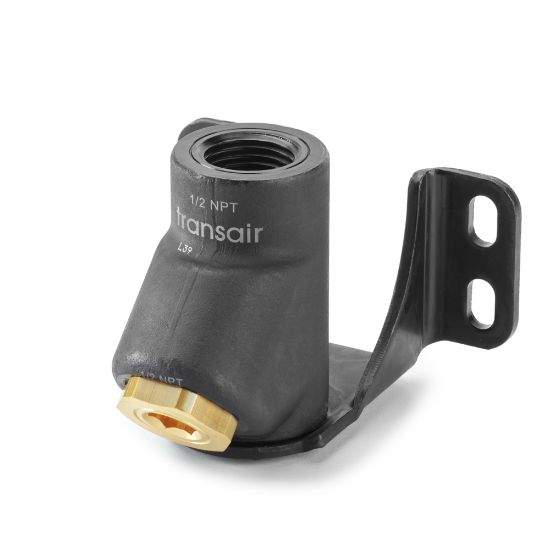

Parker 6642 22 22 - Transair® Wall Brackets for Aluminum Pipe

Transair® Wall Brackets are designed for quick connection of machinery or tools to compressed air piping systems or inert gas supply lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6642 22 22

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Transair	Division	Fluid System Connectors Division
Assembly Time	0.15 Hours	Shape	Straight
Maximum Operating Temperature	85 °C	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Division	Fluid System Connectors Division
Assembly	n/a	Connection 2 Type	Female NPT
Seal Material	NBR	Application	Inert Gases
Technology	Pneumatics	Configuration	Port to Port
Specifications Met	CE	For Fluid Type	Air
Quantity per Box	1	Body Material	Treated Brass
Weight	1,060 lb	Product Type	Wall Brackets
Connection 1 Size	NPT 1/2 inch	Connection 1 Type	Female NPT
Connection 2 Size	NPT 1/2 inch	Maximum Operating Pressure	232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c
Connection 3 Size	NPT 1/4 inch	Connection 3 Type	Female NPT
Pipe Outside Diameter	25\|16/5 mm	Pipe O.D. (mm)	N/A
Pipe O.D. (inch)	N/A	Connection Thread Size (inch)	1/2
Shape	Threaded 1 Port 45° Wall Bracket	Connection Type	Female Threaded NPT
