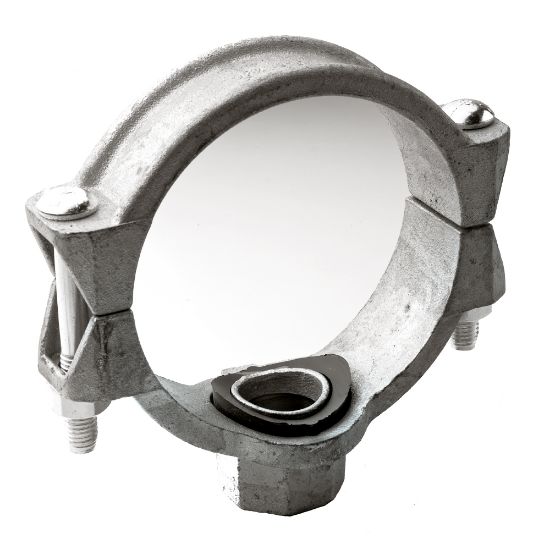

Parker RR63 L8 12 - Transair® Drop Brackets for Aluminum Pipe

Transair® Drop Brackets are designed for the quick and easy addition of drop lines to an existing compressed air pipe or inert gas system.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. RR63 L8 12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Low Pressure Connectors Europe Division	Technology	Pneumatics
Vacuum Pressure Rating	1.0 mbar 99,9% (absolute pressure)	Weight	3,4 kg
Configuration	Pipe to Port	Silicone Free	Yes
Product Type	Compressed Air Piping	Quantity per Box	1
Connection 2 Type	BSPP	Minimum Operating Temperature	-20 °C
Plating Type	Zinc-plated	Product Style	Quick Assembly Bracket
For Fluid Type	Industrial Gas Compressed Air, Inert Gas, Vacuum	Shape	Saddle
Assembly Time	0.05 Hours	Connection 1 Type	Pipe
Assembly	Drop	Maximum Operating Pressure	13 bar 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html
Application	Inert Gases	Maximum Operating Temperature	185 °F
Connection 1 Size	6 inch	Division	Low Pressure Connectors Europe Division
Body Material	Cast iron\|Zinc-Plated	Brand	Parker
Connection 2 Size	G 1-1/2	Industry	General Industrial
Specifications Met	EN 755.8	Connection 1 Size	6" (168 mm)
Connection 2 Type	Female Threaded BSP Saddle Reducing Bracket	Connection 2 Size	1-1/2"
Body Material	Cast Iron / Zinc-plated
