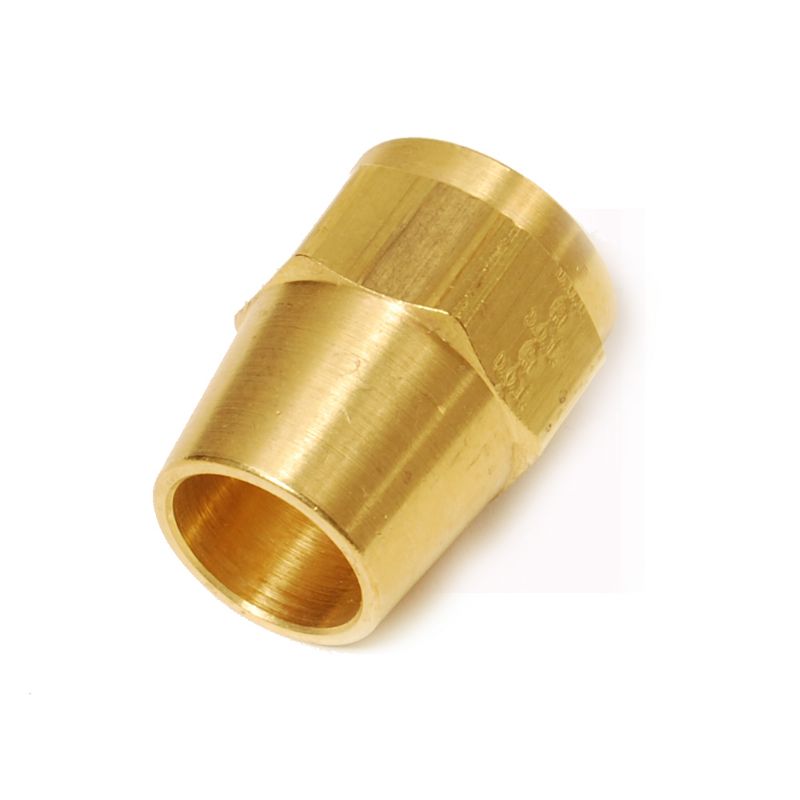

Parker 61HAB-10 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 61HAB-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Body Material	Brass	Shape	Straight
Division	Parflex Division	Industry	Transportation
Technology	Fluid & Gas Handling	Application	Semiconductor
Specifications Met	N/A	Product Series	90
Coating	Chromium 6 Free-plated	Division	Parflex Division
Hex Size 1	n/a	Product Type	Hose Fittings
Configuration	Hose to Port	Fitting Length	n/a
For Fluid Type	Hydraulic Fluids	Connection 1 Size	-10 (Size)
Connection 1 Type	Hose	Connection 2 Size	n/a
Connection Length	n/a Cut-off allowance (see drawing legend B)	Maximum Operating Pressure	3000 psi (Dependent on hose)
Hex Size	15/16 inch (see drawing legend H)	Tube Outside Diameter	16
Connection 2 Type	Nut	Hose I.D. (inch)	0.5"
Length (inch)	n/a	Connection 2 Size	13/16"-18
Product Style	Replacement Compression Nut
