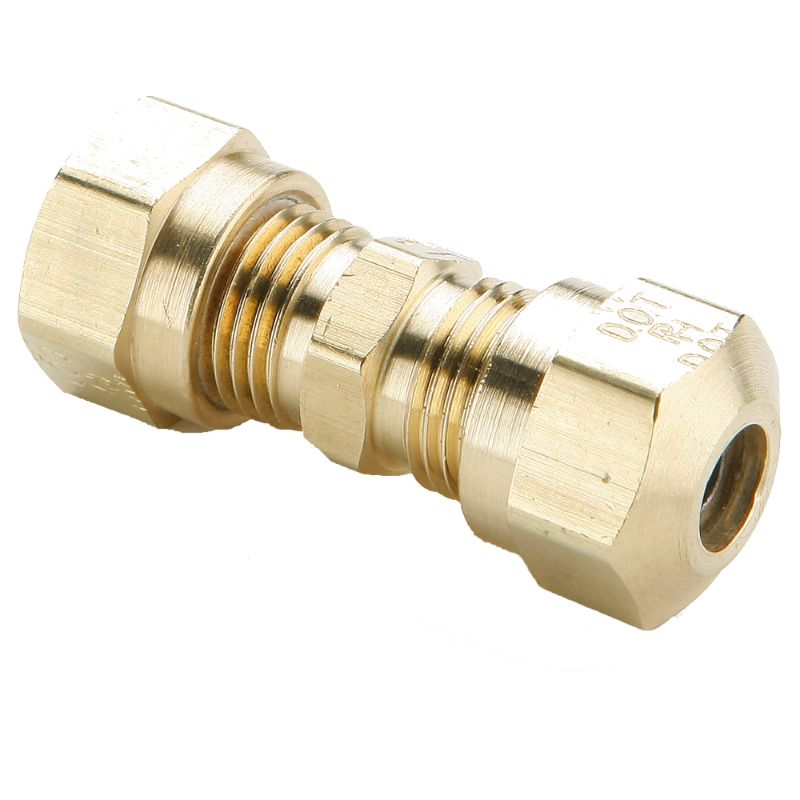

Parker 62NTA-10 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Name: Parker 62NTA-10 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA
SKU: 62NTA-10
Price: 33.58 USD
Availability: InStock

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

AFP Availability:

34 In Stock

North Chesterfield, VA	11
Fayetteville, NC	6
Summerville, SC	5
Richmond, VA	3 (Pickup only)
Sumter, SC	3
Ashland, VA	2 (Pickup only)
Johnson City, TN	2 (Pickup only)
Norfolk, VA	1
West Knoxville, TN	1

Partner Available:

204 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 62NTA-10

$33.58/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Nut Material	Brass
Division	Fluid System Connectors Division	Maximum Operating Temperature	93 °C
Minimum Operating Temperature	-40 °C	Application	Air Brake, Accessories
Body Material	Brass	Maximum Operating Pressure	150 psi
Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246	Tube Material	SAE J844 Type A & B Nylon Tubing
Sleeve Material	Brass	Thread Sealant Material	Vibra-Seal 516
Dimensional Weight	0.27594424460431655 lb	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Connection 2 Thread Size (inch)	na
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Tube O.D. (inch)	5/8
Connection 1 Style	Compression	Style	Tube to Tube
Connection 2 Style	Compression	Shape	Union
