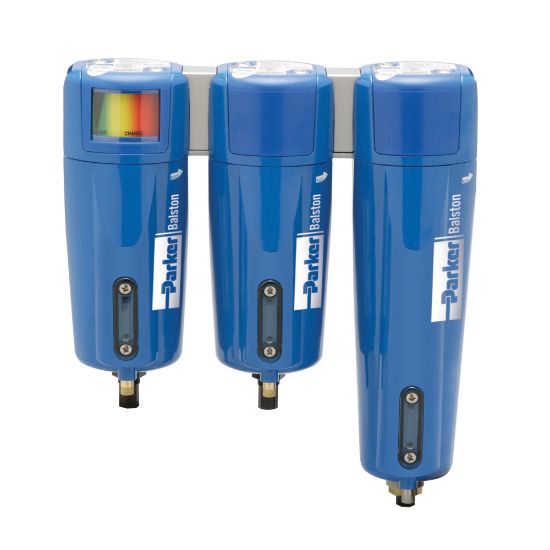

Parker 3A-2002N-3B1 - Balston 2000 Series Compressed Air Filters

Parker Balston 2000 series compressed air and gas filters remove contaminants at an efficiency of up to 99.99% for 0.01 micron particles and droplets.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3A-2002N-3B1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Industrial Gas Filtration and Generation Division
Port Size	1/4 inch	Micron Rating	0.01 MICRON
Drain Port Size	1/8 inch	Width	254 mm
Maximum Operating Temperature	54 °C	Minimum Operating Temperature	-150 °F
Maximum Flow Rate	15 CFM	Optional Accessories	Automatic Drain, DPI
Maximum Operating Pressure	175 psig	Height	279.4 mm
Weight	3.06 kg	Efficiency Rating	99.9999+ % Stage Three
Compatible Element	Stage One: 5/100-12-DX; Stage Two: 5/100-12-BX; Stage Three: CI-100-12-000	Materials of Construction	Head: Alum, Bowl: Alum, Internals: Alum, Seals: Buna-N Food Grade
Port Size	0.25"	Connection Type	NPT
Brand	Balston	Product Type	3-Stage (DX, BX, Carbon) Filter Assembly
