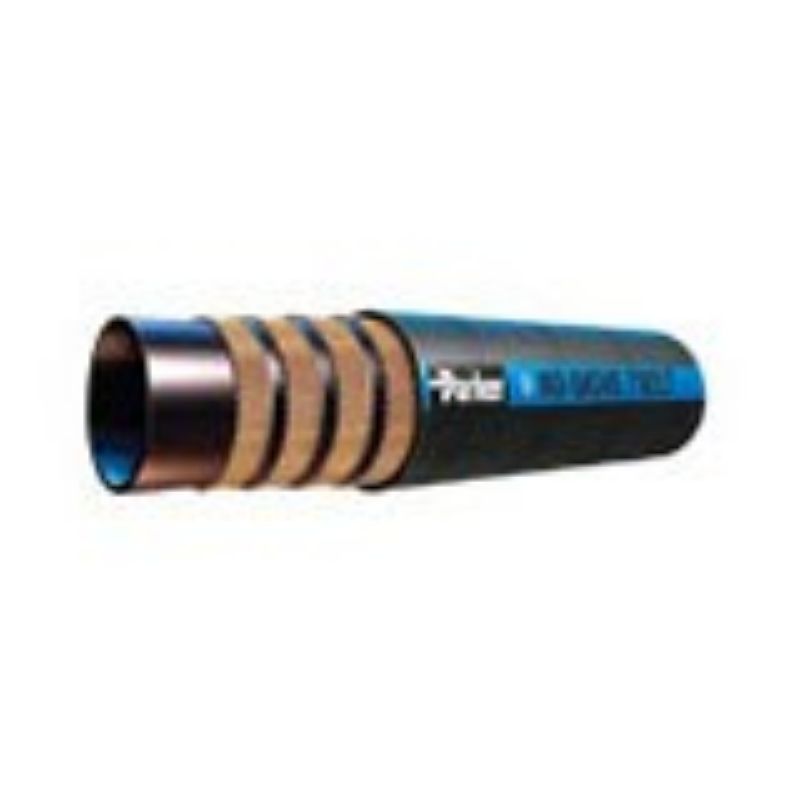

Parker 792LT-24 - Hydraulic Low-Temperature Hose 6000 PSI - 792LT Hose

Parker's 792LT hose is a hydraulic low-temperature hose with a working pressure of 6000 PSI in all sizes, designed specifically to excel in the brutal operating conditions of the extreme cold.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 792LT-24

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Temperature	100 °C
Inside Diameter	38 mm	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	38 mm	Application	Lubricating Oils
Media	Petroleum Hydraulic Fluids	Minimum Operating Temperature	-70 °F
Specifications Met	ISO 3862, Type R12	Weight	3.22 lb/ft
Compatible Fitting	79 Series	Cover Material	PKR® Rubber
Outside Diameter	57 mm	Minimum Bend Radius	530 mm
Maximum Operating Pressure	42 MPa	Hose Reinforcement Material	High Tensile Steel
Hose I.D. (size)	-24
