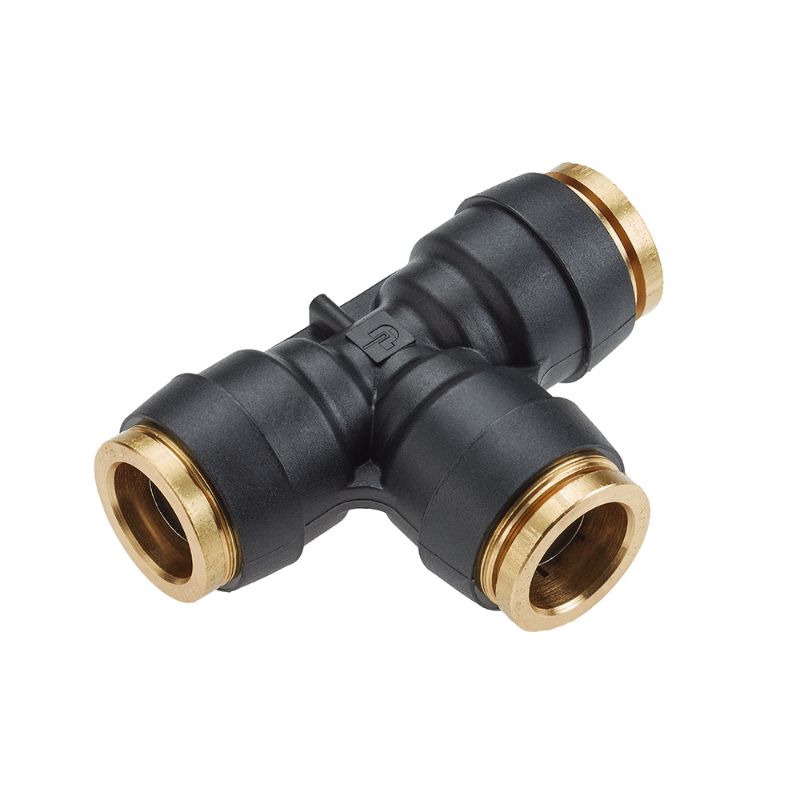

Parker 364PTC-6-6-4 - Air Brake D.O.T. composite & brass push-to-connect fittings - PTC & PTCR

Parker's PTC fitting is a push-to-connect fitting offered in both composite and brass, meeting D.O.T. and SAE specifications. Push-to-connect fittings reduce assembly time versus compression style fittings.

AFP Availability:	Quote Required
Partner Available:	83 In Stock

Brand Parker

Part No. 364PTC-6-6-4

$37.35/each

Products specifications

Attribute name	Attribute value
UOM	EA	Tube Material	J844 Type A & B Nylon Tubing
Maximum Operating Pressure	17 bar	Application	Air Brakes
Minimum Operating Temperature	-40 °C	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J2494-3
Collet Material	Brass	Body Material	Composite
Dimensional Weight	2.7594 lb	Connection Type	NPTF
Division	Fluid System Connectors Division	Maximum Operating Temperature	200 °F
O-Ring Material	Buna N	Shape	Tee
Connection 1 Size	3/8"	Connection 2 Size	3/8"
Configuration	Tube to Tube	Connection 1 Type	Push-to-Connect
Connection 2 Type	Push-to-Connect	Connection 3 Size	1/4"
Connection 3 Type	Push-to-Connect	Thread Sealant Material	n/a
Body Material	Composite
