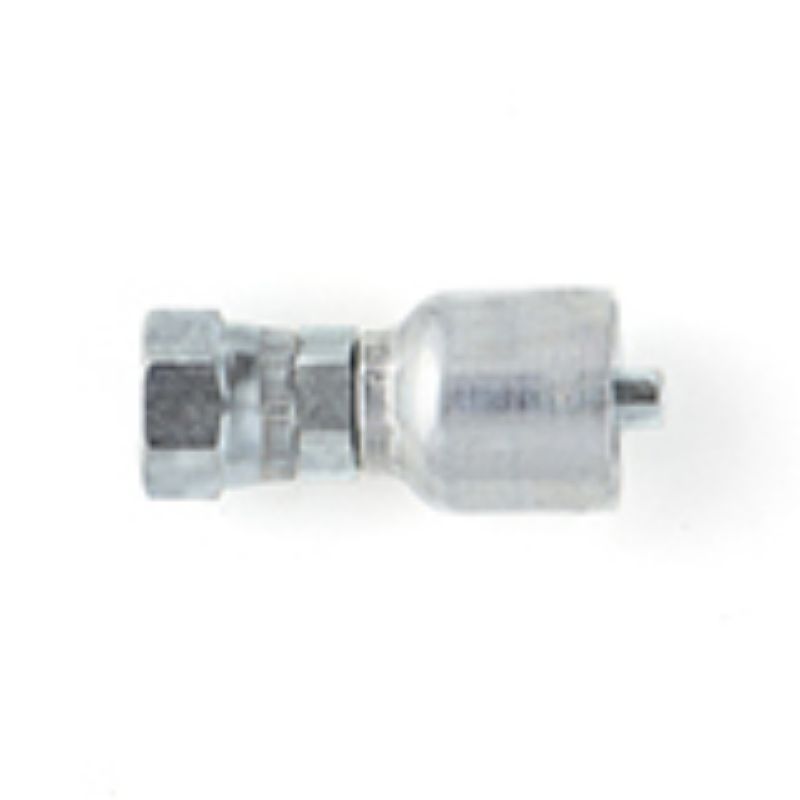

Parker 1JC71-12-12 - Crimp Style Hydraulic Hose Fitting – 71 Series Fittings

Parker's 71 series fittings are cost effective, permanent, bite the wire style fittings made for easy and quick assembly using our family of Parkrimp crimpers.

AFP Availability:	Quote Required
Partner Available:	106 In Stock

Brand Parker

Part No. 1JC71-12-12

$87.21/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flange Size	n/a
Port Size	3/4 inch	Shape	Straight Short
Product Style	Female Seal-Lok - Swivel	Hose Inside Diameter	3/4 inch
Connection Size	1-3/16"-12 inch Thread	Materials of Construction	Steel
Division	Hose Products Division	Hose I.D. (inch)	3/4"
Port Connection	3/4"	Flange Size	n/a
Product Style	Female Seal-Lok - Swivel

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
