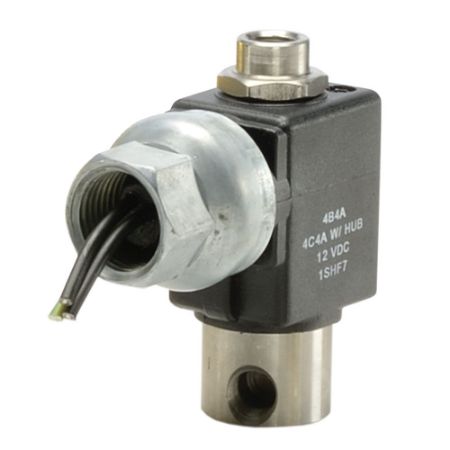

Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 3-Way Universal Direct Acting 1/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Port Type | Division | Media | Function | Valve Type | Input Voltage | Actuation Type | Orifice 2 Size | Number of Ports | Flow Coefficient 2 | Coil Specifications Met | Minimum Pressure Differential | Additional Options | Seal Material | Maximum Pressure Differential | Port Size | Body Material | Maximum Fluid Temperature | Main Flow Coefficient | Exhaust Flow Coefficient | Power Consumption | Coil Type | Exhaust Orifice Size | Product Series | Main Orifice Size | Minimum Fluid Temperature | Voltage (V) | Maximum Pressure Differential (psi) | Coil Type | Power (Watts) | Orifice Main (inch) | Flow Factor Main (Cv) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30CU02EV4B2F | Quote Required | $106.39/each | EA | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | n/a | 3 | n/a | Class F | 0 psi | n/a | FKM | 150 psi (AC) | 1/8 inch | Stainless Steel 303 | 240 °F | 0.05 Cv | n/a | 10 W (AC) | Metal Enc, 18" Leads | n/a | 204/304 Series | 3/64 inch | 32 °F | 110/50-120/60 | 150 psi (AC) | Metal Enc, 18" Leads | 10 Watt (AC) | 3/64 | 0.05 | ||
| 30CU02EV4C4E | Quote Required | $126.41/each | EA | NPT | Fluid Control Division | Liquids and Gases | Universal | 3-Way | 24/60 | Direct Acting | n/a | 3 | n/a | Class F | 0 psi | n/a | FKM | 150 psi (AC) | 1/8 inch | Stainless Steel 303 | 240 °F | 0.05 Cv | n/a | 10 W (AC) | 1/2" Conduit, 18" Leads | n/a | 204/304 Series | 3/64 inch | 32 °F | 110/50-120/60 | 150 psi (AC) | 1/2" Conduit, 18" Leads | 10 Watt (AC) | 3/64 | 0.05 | ||
| 30CU02GV4B4F | Quote Required | 6 In Stock | $117.76/each | EA | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | n/a | 3 | n/a | Class F | 0 psi | n/a | FKM | 100 psi (AC) | 1/8 inch | Stainless Steel 303 | 240 °F | 0.09 Cv | n/a | 10 W (AC) | Integrated, 18" Leads | n/a | 204/304 Series | 1/16 inch | 32 °F | 110/50-120/60 | 100 psi (AC) | Integrated, 18" Leads | 10 Watt (AC) | 1/16 | 0.09 |
