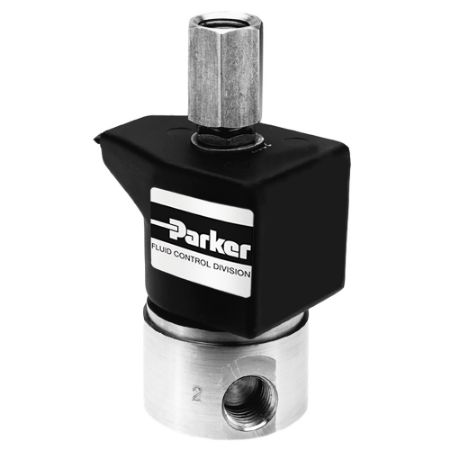

Parker 3-Way Normally Open, Pressure in Sleeve-Out Body, 1/8" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 3-Way Normally Open, Pressure in Sleeve-Out Body, Direct Acting 1/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | Main Flow Coefficient | Input Voltage | Port Size | Minimum Pressure Differential | Body Material | Main Orifice Size | Power Consumption | Seal Material | Exhaust Flow Coefficient | Maximum Pressure Differential | Actuation Type | Port Type | Maximum Fluid Temperature | Minimum Fluid Temperature | Additional Options | Function | Exhaust Orifice Size | Valve Type | Flow Coefficient 2 | Orifice 2 Size | Product Series | Media | Coil Specifications Met | Coil Type | Number of Ports | Division | Coil Type | Voltage (V) | Maximum Pressure Differential (psi) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71395SN1GNJ1N0C111C1 | Quote Required | $194.29/each | 0.28 Cv | 12.0 VDC | 1/8 inch | 0 psi | Stainless Steel 430 F | 1/16 inch | 10 W (DC) | NBR | 0.1 Cv | 150 psi (DC) | Direct Acting | NPT | 185 °F | 0 °F | Exhaust Adapter Nut | Pressure In Sleeve - Out Body | 1/16 inch | 3-Way | n/a | n/a | 7000 Series | General Purpose for Air | NEMA 4X | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 3 | Fluid Control Division | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 12 VDC | 150 psi (DC) | 10 Watt (DC) |
