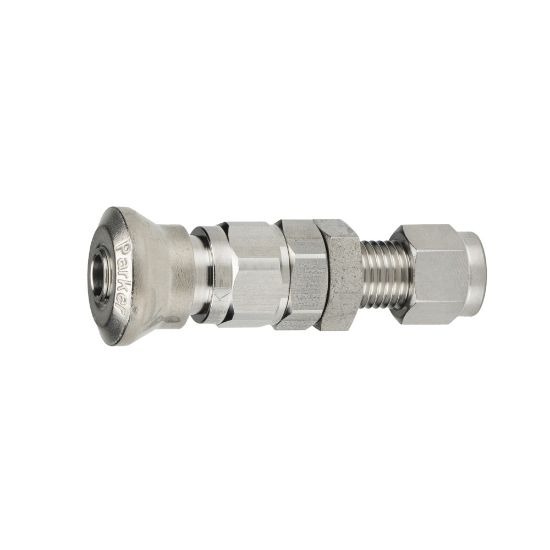

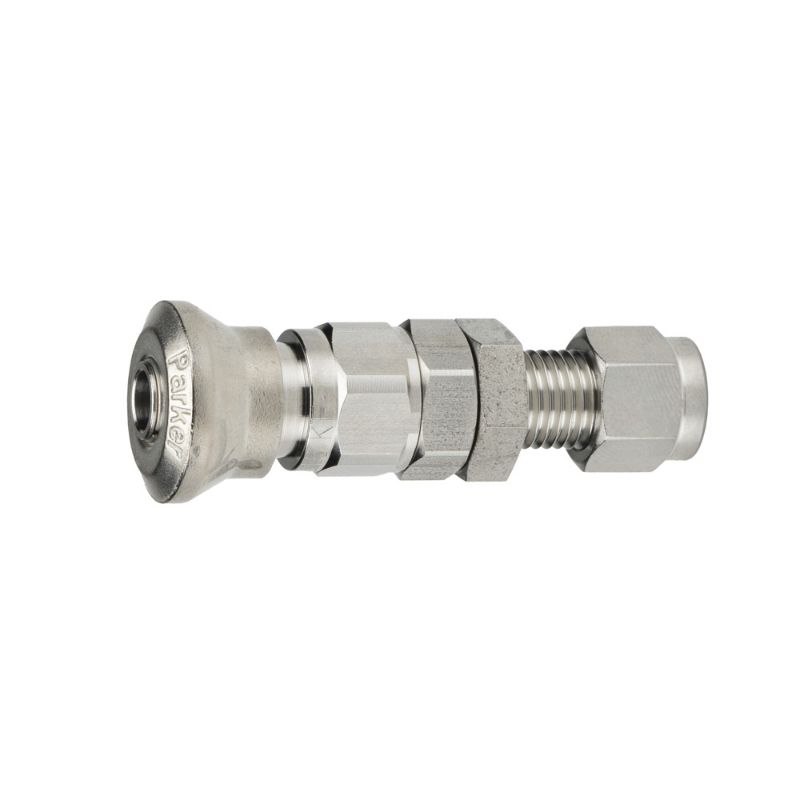

Parker 2Z-Q4CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2Z-Q4CY-SSP

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Maximum Operating Pressure	3000 psi
Maximum Operating Temperature	400 °F	Application	Instrumentation
Body Material	316 Stainless Steel	Seal Material	Fluorocarbon
Hose Inside Diameter	na	Minimum Operating Temperature	-15 °F
Valve Type	Poppet	Product Type	Push-to-Connect
Vacuum Pressure Rating	0.05 mm-Hg	Body Size (inch)	1/4
Coupling Half	Female Coupler	Connection Thread Size (inch)	na
Tube Size (inch)	1/8	Maximum Operating Pressure	3000
Connection Type	CPI tube end
