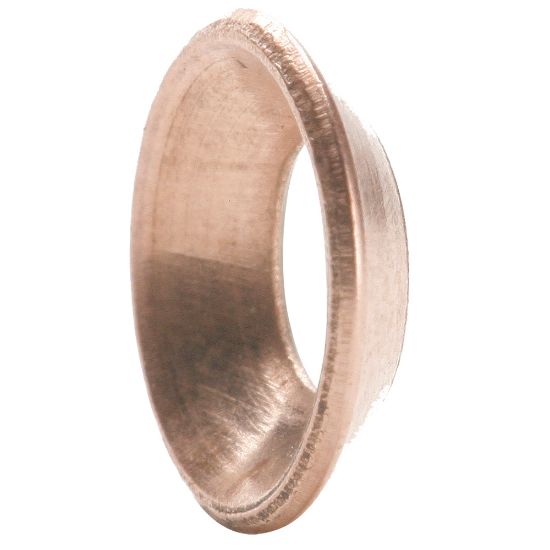

Parker 2GF-4 - Brass 45° Flare Fittings

Name: Parker 2GF-4 - Brass 45° Flare Fittings
SKU: 2GF-4
Price: 1.32 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:

3 In Stock

Ashland, VA

3 (Pickup only)

Partner Available:

8103 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 2GF-4

$1.32/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.027594424460431654 lb
Brand	Parker	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Nut Material	Brass	Technology	Fluid & Gas Handling
O-Ring Material	Fluorocarbon	Maximum Operating Temperature	250 °F
Division	Fluid System Connectors Division	Division	Fluid System Connectors Division
Application	Pumps, Gas Grills, Coffee Makers, Adapters	Minimum Operating Temperature	-53 °C
Body Material	Brass	Maximum Operating Pressure	2800 psi
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Specifications Met	SAE J512, SAE J513
Connection 1 Type	Flare	Connection 1 Tube Outside Diameter	1/4 inch
Connection 3 Tube Outside Diameter	NA	Product Style	Flare
Connection 2 Type	NA	Connection 3 Type	NA
Connection 2 Thread Size	NA	Connection 3 Thread Size	NA
Connection 2 Tube Outside Diameter	NA	Connection 1 Thread Size	NA
Shape	Flare Gasket
