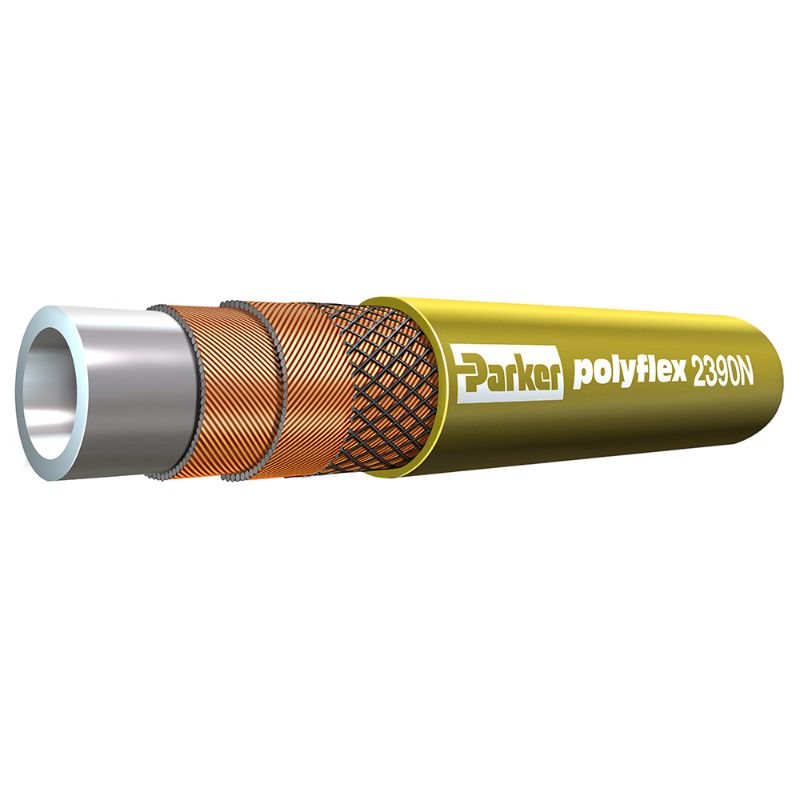

Picture of Parker 2390N-025V10 - High Pressure Hydraulic Hose - 2390N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 2390N-025V10 - High Pressure Hydraulic Hose - 2390N

Parker high pressure 2390N hydraulic oil and gas hose features low dimensional change under pressure resulting in excellent response times.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 2390N-025V10
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Minimum Operating Temperature-40 °FDivisionParflex Division
Design Factor4:1Weight0.16 kg/m
Maximum Operating Temperature212 °FSpecifications MetN/A
Hose Inner Tube MaterialPolyamide (PA)Outside Diameter0.380 inch
ApplicationHydraulic SystemsMediaPetroleum Hydraulic Fluids
Minimum Bend Radius55 mmInside Diameter5/32 inch
Compatible Fitting8X SeriesHose Reinforcement Material2 Closed Spirals and 2 Open Spirals of High Tensile Steel Wire
Size-025Cover MaterialPolyurethane Sea Water Resistant
Maximum Operating Pressure51.7 MPaCover ColorBlack
Hose I.D. (size)-025Maximum Operating Pressure7,500 psi
