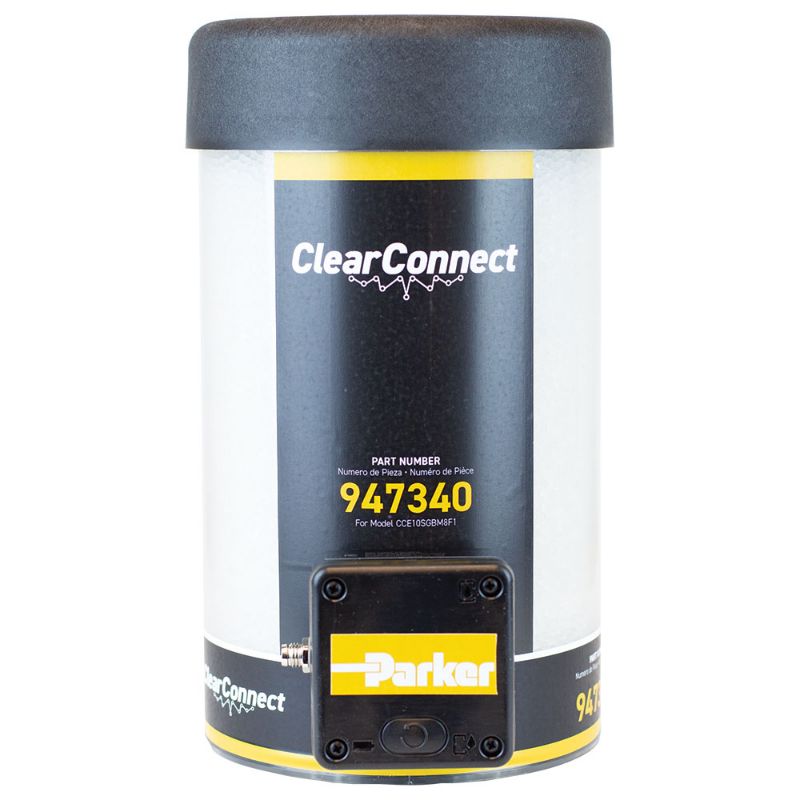

Parker CCS10SGBM8M1 - Reservoir Accessories - Desiccant Breathers

The industry leading portfolio of desiccant breather solutions designed to maximize system reliability and oil life throughout a broad range of applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CCS10SGBM8M1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-4 °F	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Installation	Screw on	Housing Material	Polycarbonate
Outside Diameter	101.6 mm	Pressure Relief Valve Type	Unpressurized
Maximum Operating Temperature	130 °F	Seal Material	Nitrile
Height	10 in (254 mm)	Connection Type	1 in Multi-fit (NPT, NPSM, BSPT, BSPP)
Flow Rate	10 SCFM	Filter Material	Polyester, Clear silica gel
Special Option	Silicone Check Valve, RH Sensor, Indicator

Product resources

Literature and Reference Materials
