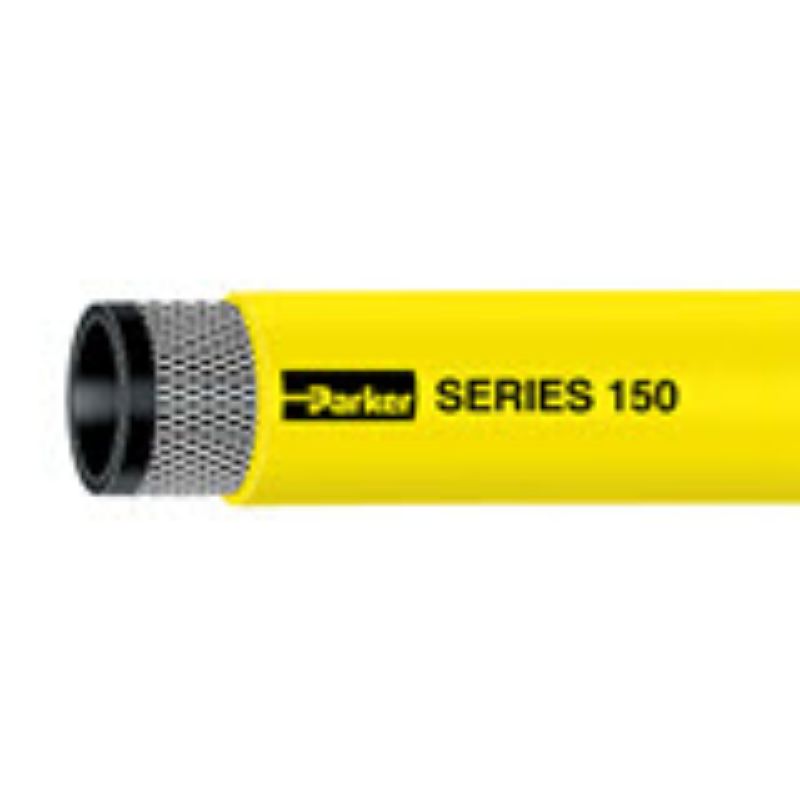

Parker 150-06002501 - NEXLO PVC General Purpose Hose, Series 150

Nexlo PVC general purpose hose is designed for transfer of air, diluted chemicals and water in applications to 150°F and 300 psi, Series 150

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 150-06002501

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Weight	0.16 kg/m
Maximum Operating Pressure	300 psi	Length per Package	500 ft
Maximum Operating Temperature	150 °F	Minimum Operating Temperature	-5 °C
Application	PVC Hose	Cover Material	PVC
Cover Structure	Smooth	Minimum Bend Radius	n/a
Hose Reinforcement Material	2 Plies of Textile	Media	Chemicals (Diluted)
Inside Diameter	9.5 mm	Package Type	Reel
Outside Diameter	15.9 mm	Compatible Fitting	n/a
Hose Inner Tube Material	Black	Hose I.D. (inch)	3/8
Color	Yellow
