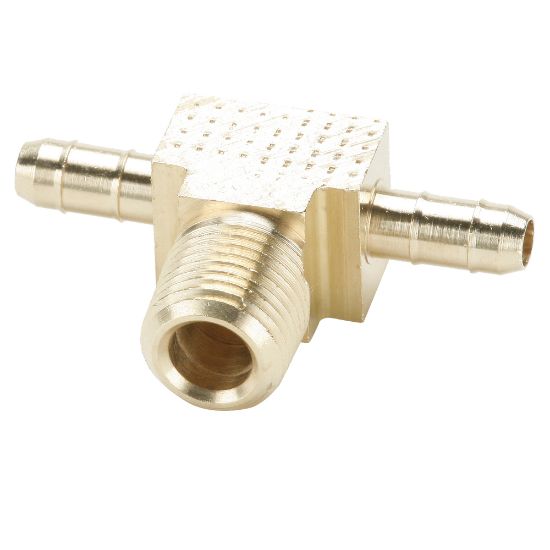

Parker 232-4-2 - Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb

Name: Parker 232-4-2 - Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb
SKU: 232-4-2
Price: 11.14 USD
Availability: InStock

Parker's Dubl-barb push-on hose barb is a compact one piece fitting for a quick, economical way to connect polyethylene tubing.

AFP Availability:

39 In Stock

Richmond, VA	30
Knoxville, TN	9

Partner Available:

133 In Stock

Brand Parker

Part No. 232-4-2

$11.14/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Pressure	10 bar	Minimum Operating Temperature	-53 °C
Tube Material	Polyethylene	Maximum Operating Temperature	90 °F
Dimensional Weight	0.10886726618705035 lb	Body Material	Brass
Connection 3 Style	na	Connection 3 Thread Size (inch)	na
Shape	Branch Tee	Connection 2 Thread Size (inch)	1/8
Connection 2 Tube O.D. (inch)	na	Connection 1 Style	Barb
Connection 1 Tube O.D. (inch)	1/4	Style	Tube to Pipe
Connection 2 Style	Male Pipe
