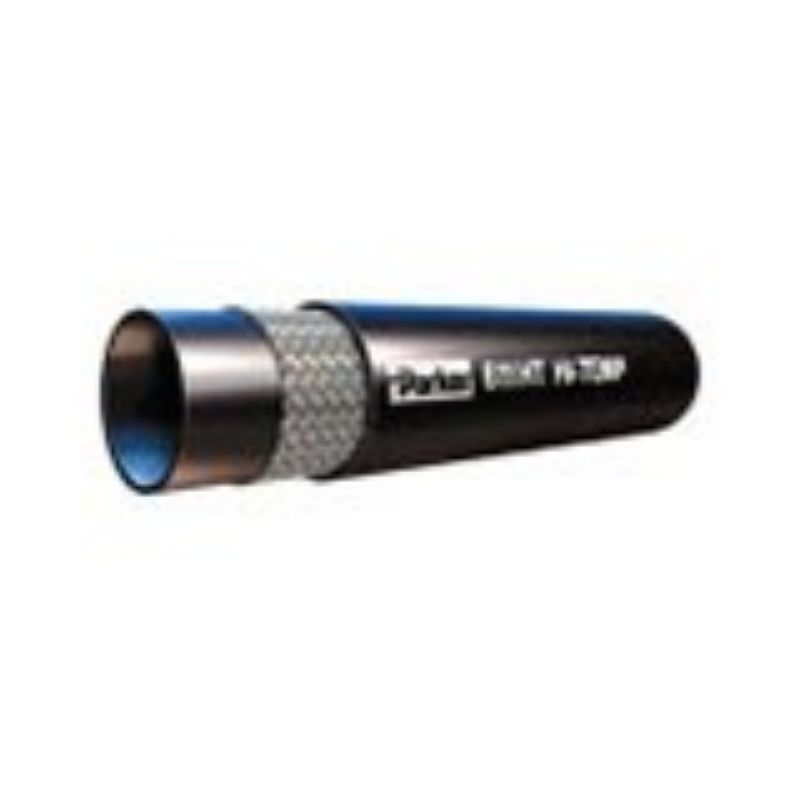

Picture of Parker 611HT-12 - High Temperature Transportation Hose 300-400 PSI – 611HT Hose

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 611HT-12 - High Temperature Transportation Hose 300-400 PSI – 611HT Hose

Parker's 611HT hose is a transportation hose that has a working pressure range of 300-400 PSI which is designed for high temperature applications.
AFP Availability:
Quote Required
Partner Available:111 In Stock
Brand Parker
Part No. 611HT-12
$18.24/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTDivisionHose Products Division
Maximum Operating Temperature302 °FMediaFuels - Check fuel type with our catalogue chart.
Compatible FittingHY SeriesHose Cover TypeSynthetic Rubber MSHA Accepted
Hose Inner Tube MaterialPKR® RubberMinimum Operating Temperature-55 °F
ApplicationLubricating OilsMinimum Bend Radius150 mm
Nominal Hose Inside Diameter18 mmCover MaterialSynthetic Rubber MSHA approved
Hose Reinforcement Material1 Braid of FiberSpecifications MetSAE J517 and 100R6
Weight0.36 kg/mMaximum Operating Pressure2.1 MPa
Outside Diameter1 inchInside Diameter3/4 inch
Hose Inside Diameter-12
