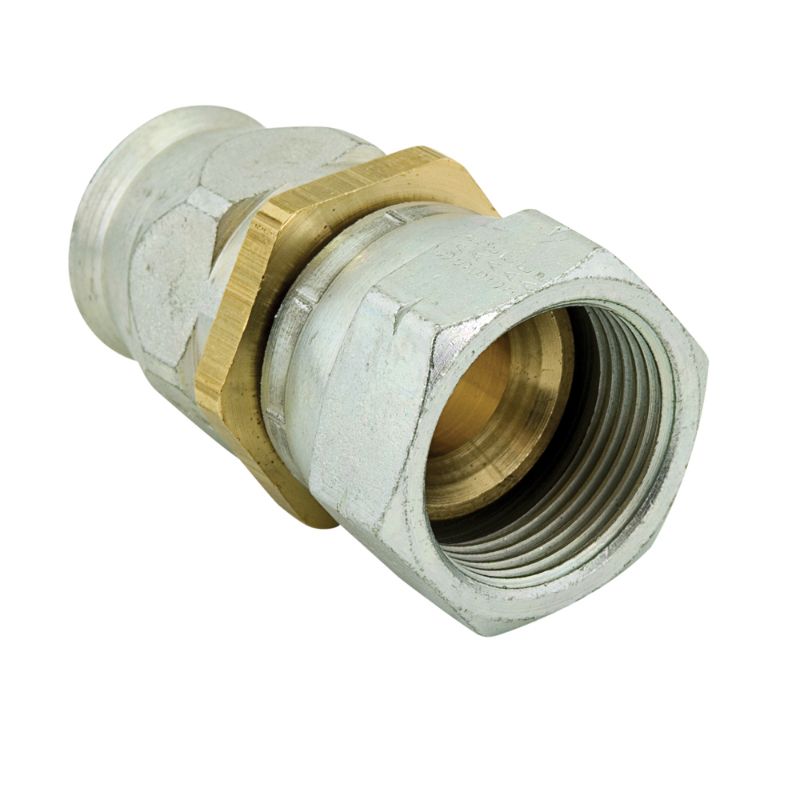

Parker 20890-12-12 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. 20890-12-12

$44.40

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Division	Parflex Division
Technology	Fluid & Gas Handling	Application	Chemical Transfer
Specifications Met	N/A	Product Series	90
Coating	Chromium 6 Free-plated	Division	Parflex Division
Product Type	Hose Fittings	Configuration	Hose to Port
For Fluid Type	Oil	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Maximum Operating Pressure	3000 psi (Dependent on hose)
Hex Size	1-1/8 inch (see drawing legend H)	Industry	Food & Beverage
Connection 2 Type	Female	Connection 2 Size	1-1/16"-14 inch Thread
Hex Size 1	1-1/4 inch (see drawing legend J)	Connection Length	1-11/16 inch Cut-off allowance (see drawing legend B)
Connection 1 Size	15.9 mm	Fitting Length	2.34 inch (see drawing legend A)
Body Material	Brass (Nipple and Ferrule)	Dimensional Weight	0.1223 lb
Hose I.D. (inch)	0.625"	Connection 2 Size	1-1/16"-14
Product Style	Female SAE 45° - Swivel - Straight	Length (inch)	2.34"
