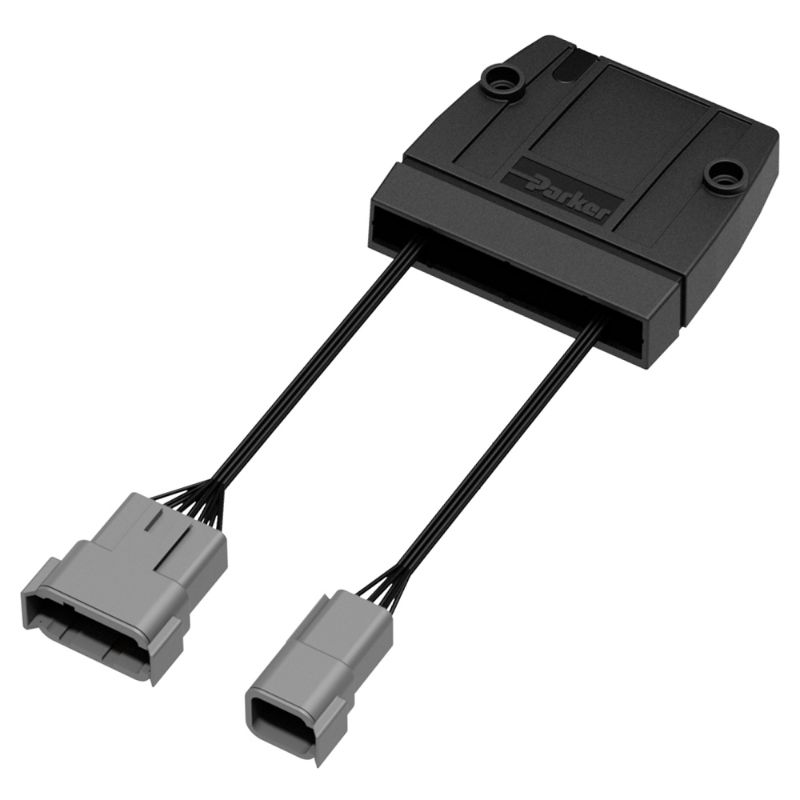

Parker 20077784 - Expansion controllers - IQAN-XC21/XC22/XC23

Parker's IQAN-XC21/XC22/XC23 expansion modules can be added to an IQAN system to increase I/O. They have voltage, digital, PWM and frequency inputs. The outputs are digital. The modules communicate with an IQAN master module over a CAN bus connection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20077784

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Electronic Motion and Controls Division	Industry	Forestry
Output Current Rating	300 mA	Number of Inputs	12
Ingress Protection Rating	66	Maximum Operating Temperature	70 °C
Number of Outputs	8	Electrical Connection	Deutsch DTM
Power Supply Voltage	9 to 32 VDC	Housing Material	Plastic
Controller Type	Slave/Expansion Module	Minimum Operating Temperature	-30 °C
Specifications Met	2004/108/EC	Model Number	IQAN-XC22
