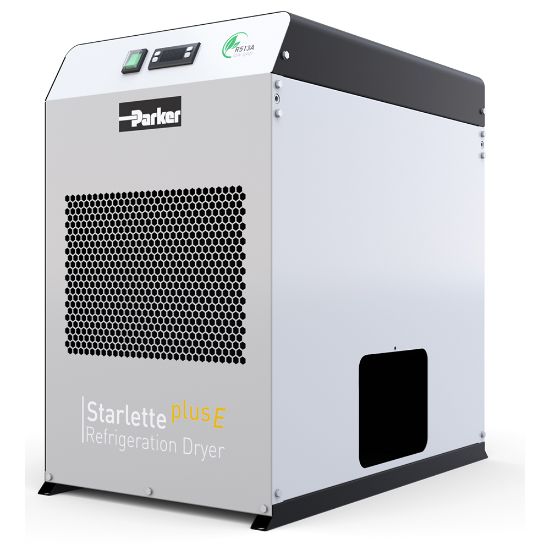

Parker SPS026-A2301DF16FHS - StarlettePlus-E Small To Medium Flow Compressed Air Refrigeration Dryers

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 600m³/h (50Hz) or 689m³/hr (60Hz) @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SPS026-A2301DF16FHS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Industry	Industrial Manufacturing Equipment	Weight	101 lb
Operating Pressure	29 to 232 psig	Noise Level	< 75 dBA
Product Series	StarlettePlus-E	Product Type	Compressed Air Dryer
Depth	24.8 inch	Division	Gas Separation and Filtration Division EMEA
Specifications Met	PED 2014/68/EU Fluid Group II	Product Style	Refrigeration
Ingress Protection Rating	IP22 Indoor Use Only	Brand	Parker
Port Size	1 inch	Ambient Temperature	50.0 °C Maximum
Electrical Requirements	230V 1ph 50Hz/60Hz	Operating Temperature	5 to 50 °C
Refrigerant Type	R513A (Low GWP Refrigerant)	Technology	Filtration
Power Consumption	0.29 kW (50Hz)	Pressure Dew Point	Standard: 3°C (37°F)<br/>
Height	25.6 inch	Flow Rate	176.0 m3/hour at 7 barg, 60Hz
Width	400.0 mm	Application	Compressed Air Applications
Division	Gas Separation and Filtration Division EMEA	Connection Type	BSPP
Flow Rate	156 m³/h @ 7 barg (92 cfm @ 102 psig) 50 Hz	Drain Option	External Float
