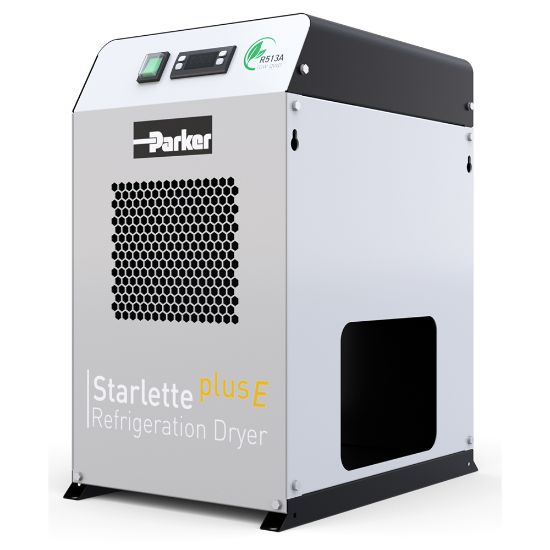

Parker SPS007-A2301DF16FHS - StarlettePlus-E Small To Medium Flow Compressed Air Refrigeration Dryers

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 600m³/h (50Hz) or 689m³/hr (60Hz) @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SPS007-A2301DF16FHS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Ingress Protection Rating	IP22 Indoor Use Only	Height	20.5 inch
Power Consumption	0.17 kW (60Hz)	Industry	Industrial Manufacturing Equipment
Product Series	StarlettePlus-E	Ambient Temperature	122.0 °F Maximum
Noise Level	< 75 dBA	Product Type	Compressed Air Dryer
Division	Gas Separation and Filtration Division EMEA	Specifications Met	PED 2014/68/EU Fluid Group II
Product Style	Refrigeration	Brand	Parker
Application	Compressed Air Applications	Weight	53 lb
Depth	15.7 inch	Operating Temperature	5 to 50 °C
Electrical Requirements	230V 1ph 50Hz/60Hz	Flow Rate	28.0 CFM at 102 psig, 60Hz
Port Size	1/2 inch	Width	11.8 inch
Refrigerant Type	R513A (Low GWP Refrigerant)	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Connection Type	BSPP
Operating Pressure	2 to 16 barg	Pressure Dew Point	Standard: 3°C (37°F)<br/>
Drain Option	External Float	Flow Rate	42 m³/h @ 7 barg (25 cfm @ 102 psig) 50 Hz
