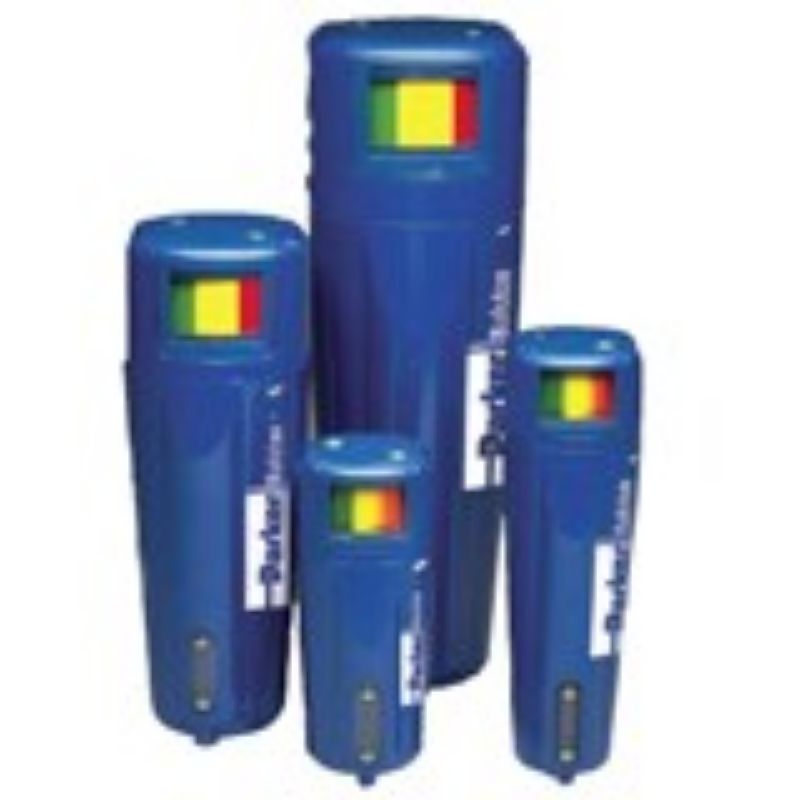

Parker 2002N-1B2-BX - Balston 2000 Series Compressed Air Filters

Parker Balston 2000 series compressed air and gas filters remove contaminants at an efficiency of up to 99.99% for 0.01 micron particles and droplets.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2002N-1B2-BX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Industrial Gas Filtration and Generation Division
Port Size	1/4 inch	Maximum Operating Pressure	250 psig
Micron Rating	0.01 MICRON	Weight	0.9 kg
Drain Port Size	1/8 inch	Minimum Operating Temperature	-100 °C
Width	3.3 inch	Maximum Operating Temperature	129 °F
Height	215.9 mm	Efficiency Rating	99.99 %
Maximum Flow Rate	42.47 m3/min	Compatible Element	5/100-12-BX
Optional Accessories	Manual Drain, DPI	Materials of Construction	Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N
Port Size	0.25"	Connection Type	NPT
Brand	Balston	Product Type	Single Stage Filter
