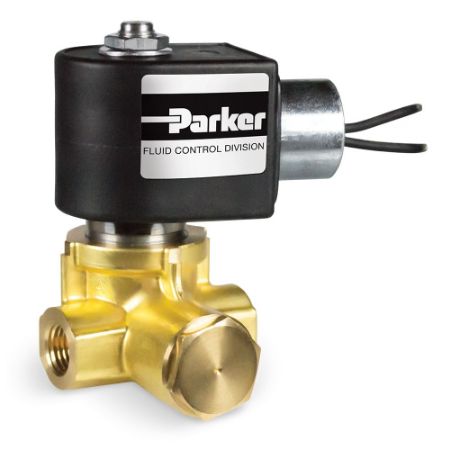

Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's 2-Way Normally Open 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation

Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff

Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Port Type	Body Material	Port Size	Division	Media	Function	Coil Type	Valve Type	Input Voltage	Seal Material	Actuation Type	Orifice 1 Size	Orifice 2 Size	Product Series	Number of Ports	Power Consumption	Flow Coefficient 1	Flow Coefficient 2	Coil Specifications Met	Maximum Fluid Temperature	Minimum Fluid Temperature	Maximum Pressure Differential	Minimum Pressure Differential	Coil Type	Voltage (V)	Power (Watts)	Seal Material	Flow Factor 1 (Cv)	Orifice 1 Size (inch)	Maximum Pressure Differential (psi)
04F20O1106ACF4C01	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	24/60	NBR	Direct Acting	3/32 inch	n/a	Gold Ring Series	2	11 W (AC)	0.17 Cv	n/a	Class F	180 °F	0 °F	300 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24/60	11 Watt (AC)	NBR	0.17	3/32	300 psi (AC)
04F20O1106ACF4C05	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	110/50-120/60	NBR	Direct Acting	3/32 inch	n/a	Gold Ring Series	2	11 W (AC)	0.17 Cv	n/a	Class F	180 °F	0 °F	300 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	11 Watt (AC)	NBR	0.17	3/32	300 psi (AC)
04F20O1106ACF4C15	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	Liquids and Gases	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	220/50 to 240/60	NBR	Direct Acting	3/32 inch	n/a	Gold Ring Series	2	11 W (AC)	0.17 Cv	n/a	Class F	180 °F	0 °F	300 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	220/50-240/60	11 Watt (AC)	NBR	0.17	3/32	300 psi (AC)
04F20O1106ACFPH01	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	Liquids and Gases	Normally Open (NO)	DIN Form A, Class F	2-Way	24/60	NBR	Direct Acting	3/32 inch	n/a	Gold Ring Series	2	11 W (AC)	0.17 Cv	n/a	Class F	180 °F	0 °F	300 psi (AC)	0 psi	DIN Form A, Class F	24/60	11 Watt (AC)	NBR	0.17	3/32	300 psi (AC)
04F20O1106ACFPH05	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	2-Way	110/50-120/60	NBR	Direct Acting	3/32 inch	n/a	Gold Ring Series	2	11 W (AC)	0.17 Cv	n/a	Class F	180 °F	0 °F	300 psi (AC)	0 psi	DIN Form A, Class F	110/50-120/60	11 Watt (AC)	NBR	0.17	3/32	300 psi (AC)
04F20O1106ACFPH15	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	Liquids and Gases	Normally Open (NO)	DIN Form A, Class F	2-Way	220/50 to 240/60	NBR	Direct Acting	3/32 inch	n/a	Gold Ring Series	2	11 W (AC)	0.17 Cv	n/a	Class F	180 °F	0 °F	300 psi (AC)	0 psi	DIN Form A, Class F	220/50-240/60	11 Watt (AC)	NBR	0.17	3/32	300 psi (AC)
04F20O1108ACF4C01	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	24/60	NBR	Direct Acting	1/8 inch	n/a	Gold Ring Series	2	11 W (AC)	0.35 Cv	n/a	Class F	180 °F	0 °F	130 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24/60	11 Watt (AC)	NBR	0.35	1/8	130 psi (AC)
04F20O1108ACF4C05	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	110/50-120/60	NBR	Direct Acting	1/8 inch	n/a	Gold Ring Series	2	11 W (AC)	0.35 Cv	n/a	Class F	180 °F	0 °F	130 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	11 Watt (AC)	NBR	0.35	1/8	130 psi (AC)
04F20O1108ACF4C15	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	Liquids and Gases	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	220/50 to 240/60	NBR	Direct Acting	1/8 inch	n/a	Gold Ring Series	2	11 W (AC)	0.35 Cv	n/a	Class F	180 °F	0 °F	130 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	220/50-240/60	11 Watt (AC)	NBR	0.35	1/8	130 psi (AC)
04F20O1108ACFPH01	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	2-Way	24/60	NBR	Direct Acting	1/8 inch	n/a	Gold Ring Series	2	11 W (AC)	0.35 Cv	n/a	Class F	180 °F	0 °F	130 psi (AC)	0 psi	DIN Form A, Class F	24/60	11 Watt (AC)	NBR	0.35	1/8	130 psi (AC)
04F20O1108ACFPH05	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	Liquids and Gases	Normally Open (NO)	DIN Form A, Class F	2-Way	110/50-120/60	NBR	Direct Acting	1/8 inch	n/a	Gold Ring Series	2	11 W (AC)	0.35 Cv	n/a	Class F	180 °F	0 °F	130 psi (AC)	0 psi	DIN Form A, Class F	110/50-120/60	11 Watt (AC)	NBR	0.35	1/8	130 psi (AC)
04F20O1108ACFPH15	Quote Required	Quote Required	TBD	NPT	Brass	1/4	Fluid Control Division	General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	2-Way	220/50 to 240/60	NBR	Direct Acting	1/8	n/a	Gold Ring Series	2	11 W (AC)	0.35	n/a	Class F	180	0	130 psi (AC)	0	DIN Form A, Class F	220/50-240/60	11 Watt (AC)	NBR	0.35	1/8	130 psi (AC)
04F20O1308ACF4C01	Quote Required	Quote Required	TBD	NPT	Brass	1/4	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	24/60	EPDM	Direct Acting	1/8	n/a	Gold Ring Series	2	11 W (AC)	0.35	n/a	Class F	180	0	130 psi (AC)	0	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24/60	11 Watt (AC)	EPDM	0.35	1/8	130 psi (AC)
04F20O1308ACF4C05	Quote Required	Quote Required	TBD	NPT	Brass	1/4	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	110/50-120/60	EPDM	Direct Acting	1/8	n/a	Gold Ring Series	2	11 W (AC)	0.35	n/a	Class F	180	0	130 psi (AC)	0	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	11 Watt (AC)	EPDM	0.35	1/8	130 psi (AC)
04F20O1308ACF4C15	Quote Required	Quote Required	TBD	NPT	Brass	1/4	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	220/50 to 240/60	EPDM	Direct Acting	1/8	n/a	Gold Ring Series	2	11 W (AC)	0.35	n/a	Class F	180	0	130 psi (AC)	0	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	220/50-240/60	11 Watt (AC)	EPDM	0.35	1/8	130 psi (AC)
04F20O1308ACFPH01	Quote Required	Quote Required	TBD	NPT	Brass	1/4	Fluid Control Division	General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	2-Way	24/60	EPDM	Direct Acting	1/8	n/a	Gold Ring Series	2	11 W (AC)	0.35	n/a	Class F	180	0	130 psi (AC)	0	DIN Form A, Class F	24/60	11 Watt (AC)	EPDM	0.35	1/8	130 psi (AC)
04F20O1308ACFPH05	Quote Required	Quote Required	TBD	NPT	Brass	1/4	Fluid Control Division	General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	2-Way	110/50-120/60	EPDM	Direct Acting	1/8	n/a	Gold Ring Series	2	11 W (AC)	0.35	n/a	Class F	180	0	130 psi (AC)	0	DIN Form A, Class F	110/50-120/60	11 Watt (AC)	EPDM	0.35	1/8	130 psi (AC)
04F20O1308ACFPH15	Quote Required	Quote Required	TBD	NPT	Brass	1/4	Fluid Control Division	General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	2-Way	220/50 to 240/60	EPDM	Direct Acting	1/8	n/a	Gold Ring Series	2	11 W (AC)	0.35	n/a	Class F	180	0	130 psi (AC)	0	DIN Form A, Class F	220/50-240/60	11 Watt (AC)	EPDM	0.35	1/8	130 psi (AC)
04F20O2118ACF4C01	Quote Required	Quote Required	TBD	NPT	Brass	1/4	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	24/60	NBR	Direct Acting	9/32	n/a	Gold Ring Series	2	11 W (AC)	0.96	n/a	Class F	180	0	30 psi (AC)	0	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	24/60	11 Watt (AC)	NBR	0.96	9/32	30 psi (AC)
04F20O2118ACF4C05	Quote Required	Quote Required	TBD	NPT	Brass	1/4 inch	Fluid Control Division	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	2-Way	110/50-120/60	NBR	Direct Acting	9/32 inch	n/a	Gold Ring Series	2	11 W (AC)	0.96 Cv	n/a	Class F	180 °F	0 °F	30 psi (AC)	0 psi	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	110/50-120/60	11 Watt (AC)	NBR	0.96	9/32	30 psi (AC)
