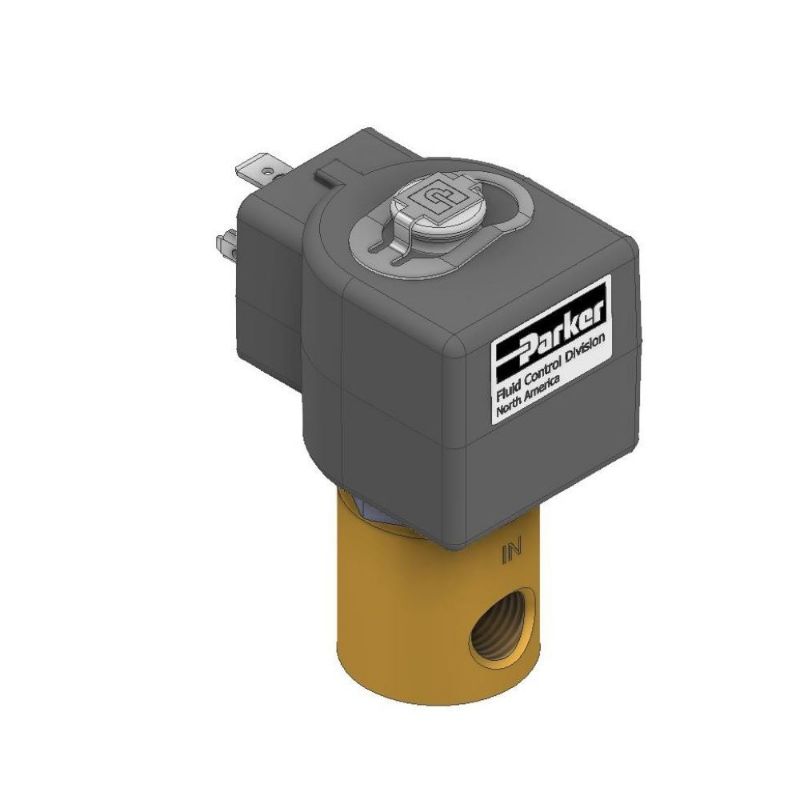

Parker 04F20O2118ACFPH05 - Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to .96 CV's. They have brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 04F20O2118ACFPH05

$207.17

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Brass	Port Size	1/4 inch
Division	Fluid Control Division	Media	General Purpose for Air
Function	Normally Open (NO)	Coil Type	DIN Form A, Class F
Valve Type	2-Way	Input Voltage	110/50-120/60
Seal Material	NBR	Actuation Type	Direct Acting
Orifice 1 Size	9/32 inch	Orifice 2 Size	n/a
Product Series	Gold Ring Series	Number of Ports	2
Power Consumption	11 W (AC)	Flow Coefficient 1	0.96 Cv
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Maximum Fluid Temperature	180 °F	Minimum Fluid Temperature	0 °F
Maximum Pressure Differential	30 psi (AC)	Minimum Pressure Differential	0 psi
Coil Type	DIN Form A, Class F	Voltage (V)	110/50-120/60
Power (Watts)	11 Watt (AC)	Seal Material	NBR
Flow Factor 1 (Cv)	0.96	Orifice 1 Size (inch)	9/32
Maximum Pressure Differential (psi)	30 psi (AC)
