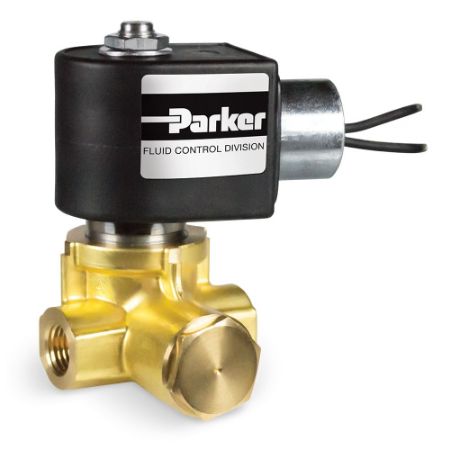

Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's 2-Way Normally Open 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Input Voltage | Minimum Pressure Differential | Port Size | Body Material | Number of Ports | Media | Coil Type | Coil Specifications Met | Port Type | Maximum Fluid Temperature | Flow Coefficient 1 | Orifice 1 Size | Orifice 2 Size | Product Series | Seal Material | Maximum Pressure Differential | Power Consumption | Actuation Type | Division | Flow Coefficient 2 | Function | Valve Type | Minimum Fluid Temperature | Coil Type | Voltage (V) | Power (Watts) | Seal Material | Flow Factor 1 (Cv) | Orifice 1 Size (inch) | Maximum Pressure Differential (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04F20O2118ACFPH05 | Quote Required | $218.58/each | EA | 110/50-120/60 | 0 psi | 1/4 inch | Brass | 2 | General Purpose for Air | DIN Form A, Class F | Class F | NPT | 180 °F | 0.96 Cv | 9/32 inch | n/a | Gold Ring Series | NBR | 30 psi (AC) | 11 W (AC) | Direct Acting | Fluid Control Division | n/a | Normally Open (NO) | 2-Way | 0 °F | DIN Form A, Class F | 110/50-120/60 | 11 Watt (AC) | NBR | 0.96 | 9/32 | 30 psi (AC) | ||
| 7122KBN2LF00N0D100C2 | Quote Required | $187.15/each | EA | 24.0 VDC | 0 psi | 1/4 inch | Brass | 2 | General Purpose for Air | DIN Form A, Class F | Class F | NPT | 165 °F | 0.21 Cv | 3/32 inch | n/a | 7000 Series | PCTFE | 175 psi (DC) | 10 W (DC) | Direct Acting | Fluid Control Division | n/a | Normally Open (NO) | 2-Way | 0 °F | DIN Form A, Class F | 24 VDC | 10 Watt (DC) | PCTFE | 0.21 | 3/32 | 175 psi (DC) |
