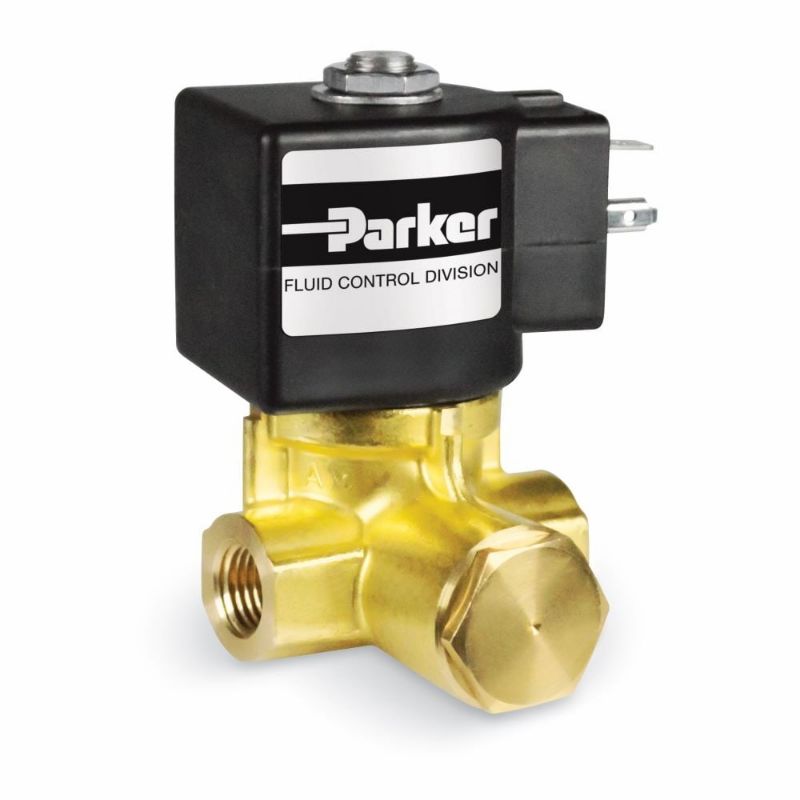

Parker 7122KBN2LF00N0D100C2 - Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to .96 CV's. They have brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7122KBN2LF00N0D100C2

$187.15/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Coefficient 2	n/a
Product Series	7000 Series	Orifice 2 Size	n/a
Power Consumption	10 W (DC)	Seal Material	PCTFE
Actuation Type	Direct Acting	Division	Fluid Control Division
Coil Type	DIN Form A, Class F	Function	Normally Open (NO)
Minimum Fluid Temperature	0 °F	Valve Type	2-Way
Body Material	Brass	Input Voltage	24.0 VDC
Media	General Purpose for Air	Minimum Pressure Differential	0 psi
Number of Ports	2	Port Size	1/4 inch
Coil Specifications Met	Class F	Port Type	NPT
Maximum Pressure Differential	175 psi (DC)	Maximum Fluid Temperature	165 °F
Flow Coefficient 1	0.21 Cv	Orifice 1 Size	3/32 inch
Coil Type	DIN Form A, Class F	Voltage (V)	24 VDC
Orifice 1 Size (inch)	3/32	Power (Watts)	10 Watt (DC)
Seal Material	PCTFE	Flow Factor 1 (Cv)	0.21
Maximum Pressure Differential (psi)	175 psi (DC)

Product resources

Literature and Reference Materials

7121K/7122K Installation, Operation & Maintenance Instructions (PDF)
