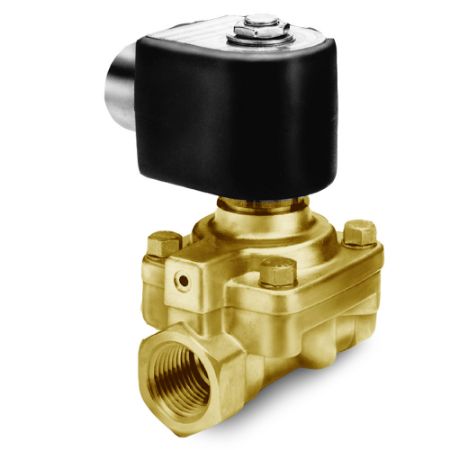

Parker 2-Way Normally Closed, 2" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 2-Way Normally Closed 2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in brass construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Port Type | Body Material | Port Size | Division | Media | Function | Coil Type | Valve Type | Input Voltage | Seal Material | Orifice 2 Size | Number of Ports | Flow Coefficient 2 | Coil Specifications Met | Minimum Fluid Temperature | Minimum Pressure Differential | Maximum Fluid Temperature | Maximum Pressure Differential | Product Series | Power Consumption | Actuation Type | Orifice 1 Size | Flow Coefficient 1 | Coil Type | Voltage (V) | Maximum Pressure Differential (psi) | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7321GBN99N00N0C111C1 | Quote Required | TBD | NPT | Brass | 2 inch | Fluid Control Division | Liquids and Gases | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 2-Way | 12.0 VDC | NBR | n/a | 2 | n/a | NEMA 4X | 0 °F | 5 psi | 185 °F | 200 psi (DC) | 7000 Series | 10 W (DC) | Pilot | 1-9/16 inch | 38.6 Cv | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 12 VDC | 200 psi (DC) | 10 Watt (DC) | |||
| 7321GBN99N00N0C111C2 | Quote Required | $931.59 | EA | NPT | Brass | 2 inch | Fluid Control Division | Liquids and Gases | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 2-Way | 24.0 VDC | NBR | n/a | 2 | n/a | NEMA 4X | 0 °F | 5 psi | 185 °F | 200 psi (DC) | 7000 Series | 10 W (DC) | Pilot | 1-9/16 inch | 38.6 Cv | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | 200 psi (DC) | 10 Watt (DC) | ||
| 7321GBN99N00N0C111Q3 | Quote Required | TBD | NPT | Brass | 2 inch | Fluid Control Division | Liquids and Gases | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 2-Way | 220/50 to 240/60 | NBR | n/a | 2 | n/a | NEMA 4X | 0 °F | 5 psi | 185 °F | 230 psi (AC) | 7000 Series | 10 W (AC) | Pilot | 1-9/16 inch | 38.6 Cv | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 220/50-240/60 | 230 psi (AC) | 10 Watt (AC) | |||
| 7321GBN99N00N0C222C1 | Quote Required | TBD | NPT | Brass | 2 | Fluid Control Division | General Purpose for Air | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 2-Way | 12.0 | NBR | n/a | 2 | n/a | NEMA 4X | 0 | 5 | 185 | 200 psi (DC) | 7000 Series | 10 W (DC) | Pilot | 1-9/16 | 38.6 | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 12 VDC | 200 psi (DC) | 10 Watt (DC) | |||
| 7321GBN99N00N0C222C2 | Quote Required | TBD | NPT | Brass | 2 | Fluid Control Division | General Purpose for Air | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 2-Way | 24.0 | NBR | n/a | 2 | n/a | NEMA 4X | 0 | 5 | 185 | 200 psi (DC) | 7000 Series | 10 W (DC) | Pilot | 1-9/16 | 38.6 | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 24 VDC | 200 psi (DC) | 10 Watt (DC) | |||
| 7321GBN99N00N0C222P3 | Quote Required | $0.01 | EA | NPT | Brass | 2 | Fluid Control Division | General Purpose for Air | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 2-Way | 110/50-120/60 | NBR | n/a | 2 | n/a | NEMA 4X | 0 | 5 | 185 | 230 psi (AC) | 7000 Series | 10 W (AC) | Pilot | 1-9/16 | 38.6 | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 110/50-120/60 | 230 psi (AC) | 10 Watt (AC) | ||
| 7321GBN99N00N0C222Q3 | Quote Required | TBD | NPT | Brass | 2 inch | Fluid Control Division | General Purpose for Air | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 2-Way | 220/50 to 240/60 | NBR | n/a | 2 | n/a | NEMA 4X | 0 °F | 5 psi | 185 °F | 230 psi (AC) | 7000 Series | 10 W (AC) | Pilot | 1-9/16 inch | 38.6 Cv | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 220/50-240/60 | 230 psi (AC) | 10 Watt (AC) | |||
| 7321GBN99N00N0C322C1 | Quote Required | TBD | NPT | Brass | 2 | Fluid Control Division | General Purpose for Air | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 2-Way | 12.0 | NBR | n/a | 2 | n/a | NEMA 4X | 0 | 5 | 185 | 230 psi (DC) | 7000 Series | 22 W (DC) | Pilot | 1-9/16 | 38.6 | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 12 VDC | 230 psi (DC) | 22 Watt (DC) | |||
| 7321GBN99N00N0C322C2 | Quote Required | TBD | NPT | Brass | 2 inch | Fluid Control Division | Liquids and Gases | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 2-Way | 24.0 VDC | NBR | n/a | 2 | n/a | NEMA 4X | 0 °F | 5 psi | 185 °F | 230 psi (DC) | 7000 Series | 22 W (DC) | Pilot | 1-9/16 inch | 38.6 Cv | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X | 24 VDC | 230 psi (DC) | 22 Watt (DC) | |||
| 7321GBN99N00N0D100C1 | Quote Required | TBD | NPT | Brass | 2 | Fluid Control Division | General Purpose for Air | Normally Closed (NC) | DIN Form A, Class F | 2-Way | 12.0 | NBR | n/a | 2 | n/a | NEMA 4X | 0 | 5 | 185 | 200 psi (DC) | 7000 Series | 10 W (DC) | Pilot | 1-9/16 | 38.6 | DIN Form A, Class F | 12 VDC | 200 psi (DC) | 10 Watt (DC) | |||
| 7321GBN99N00N0D100C2 | Quote Required | TBD | NPT | Brass | 2 inch | Fluid Control Division | Liquids and Gases | Normally Closed (NC) | DIN Form A, Class F | 2-Way | 24.0 VDC | NBR | n/a | 2 | n/a | NEMA 4X | 0 °F | 5 psi | 185 °F | 200 psi (DC) | 7000 Series | 10 W (DC) | Pilot | 1-9/16 inch | 38.6 Cv | DIN Form A, Class F | 24 VDC | 200 psi (DC) | 10 Watt (DC) | |||
| 7321GBN99N00N0D100P3 | 2 Limited Stock | Quote Required | $923.07 | EA | NPT | Brass | 2 inch | Fluid Control Division | Liquids and Gases | Normally Closed (NC) | DIN Form A, Class F | 2-Way | 110/50-120/60 | NBR | n/a | 2 | n/a | NEMA 4X | 0 °F | 5 psi | 185 °F | 230 psi (AC) | 7000 Series | 10 W (AC) | Pilot | 1-9/16 inch | 38.6 Cv | DIN Form A, Class F | 110/50-120/60 | 230 psi (AC) | 10 Watt (AC) | |
| 7321GBN99N00N0D100Q3 | Quote Required | TBD | NPT | Brass | 2 inch | Fluid Control Division | General Purpose for Air | Normally Closed (NC) | DIN Form A, Class F | 2-Way | 220/50 to 240/60 | NBR | n/a | 2 | n/a | NEMA 4X | 0 °F | 5 psi | 185 °F | 230 psi (AC) | 7000 Series | 10 W (AC) | Pilot | 1-9/16 inch | 38.6 Cv | DIN Form A, Class F | 220/50-240/60 | 230 psi (AC) | 10 Watt (AC) | |||
| 7321GBN99N00N0D200C1 | Quote Required | TBD | NPT | Brass | 2 | Fluid Control Division | General Purpose for Air | Normally Closed (NC) | DIN Form A, Class H | 2-Way | 12.0 | NBR | n/a | 2 | n/a | NEMA 4X | 0 | 5 | 185 | 200 psi (DC) | 7000 Series | 10 W (DC) | Pilot | 1-9/16 | 38.6 | DIN Form A, Class H | 12 VDC | 200 psi (DC) | 10 Watt (DC) | |||
| 7321GBN99N00N0D200P3 | Quote Required | TBD | NPT | Brass | 2 | Fluid Control Division | General Purpose for Air | Normally Closed (NC) | DIN Form A, Class H | 2-Way | 110/50-120/60 | NBR | n/a | 2 | n/a | NEMA 4X | 0 | 5 | 185 | 230 psi (AC) | 7000 Series | 10 W (AC) | Pilot | 1-9/16 | 38.6 | DIN Form A, Class H | 110/50-120/60 | 230 psi (AC) | 10 Watt (AC) | |||
| 7321GBN99N00N0D300C1 | Quote Required | TBD | NPT | Brass | 2 | Fluid Control Division | General Purpose for Air | Normally Closed (NC) | DIN Form A, Class H | 2-Way | 12.0 | NBR | n/a | 2 | n/a | NEMA 4X | 0 | 5 | 185 | 230 psi (DC) | 7000 Series | 22 W (DC) | Pilot | 1-9/16 | 38.6 | DIN Form A, Class H | 12 VDC | 230 psi (DC) | 22 Watt (DC) | |||
| 7321GBN99N00N0D300C2 | Quote Required | TBD | NPT | Brass | 2 inch | Fluid Control Division | General Purpose for Air | Normally Closed (NC) | DIN Form A, Class H | 2-Way | 24.0 VDC | NBR | n/a | 2 | n/a | NEMA 4X | 0 °F | 5 psi | 185 °F | 230 psi (DC) | 7000 Series | 22 W (DC) | Pilot | 1-9/16 inch | 38.6 Cv | DIN Form A, Class H | 24 VDC | 230 psi (DC) | 22 Watt (DC) | |||
| 7321GBN99N00N0H111C1 | Quote Required | TBD | NPT | Brass | 2 inch | Fluid Control Division | Liquids and Gases | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 2-Way | 12.0 VDC | NBR | n/a | 2 | n/a | NEMA 7 | 0 °F | 5 psi | 185 °F | 200 psi (DC) | 7000 Series | 10 W (DC) | Pilot | 1-9/16 inch | 38.6 Cv | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 12 VDC | 200 psi (DC) | 10 Watt (DC) | |||
| 7321GBN99N00N0H111C2 | Quote Required | $1,003.32 | EA | NPT | Brass | 2 inch | Fluid Control Division | Liquids and Gases | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 2-Way | 24.0 VDC | NBR | n/a | 2 | n/a | NEMA 9 | 0 °F | 5 psi | 185 °F | 200 psi (DC) | 7000 Series | 10 W (DC) | Pilot | 1-9/16 inch | 38.6 Cv | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | 200 psi (DC) | 10 Watt (DC) | ||
| 7321GBN99N00N0H111P3 | Quote Required | TBD | NPT | Brass | 2 inch | Fluid Control Division | Liquids and Gases | Normally Closed (NC) | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 2-Way | 110/50-120/60 | NBR | n/a | 2 | n/a | NEMA 9 | 0 °F | 5 psi | 185 °F | 230 psi (AC) | 7000 Series | 10 W (AC) | Pilot | 1-9/16 inch | 38.6 Cv | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 110/50-120/60 | 230 psi (AC) | 10 Watt (AC) |
