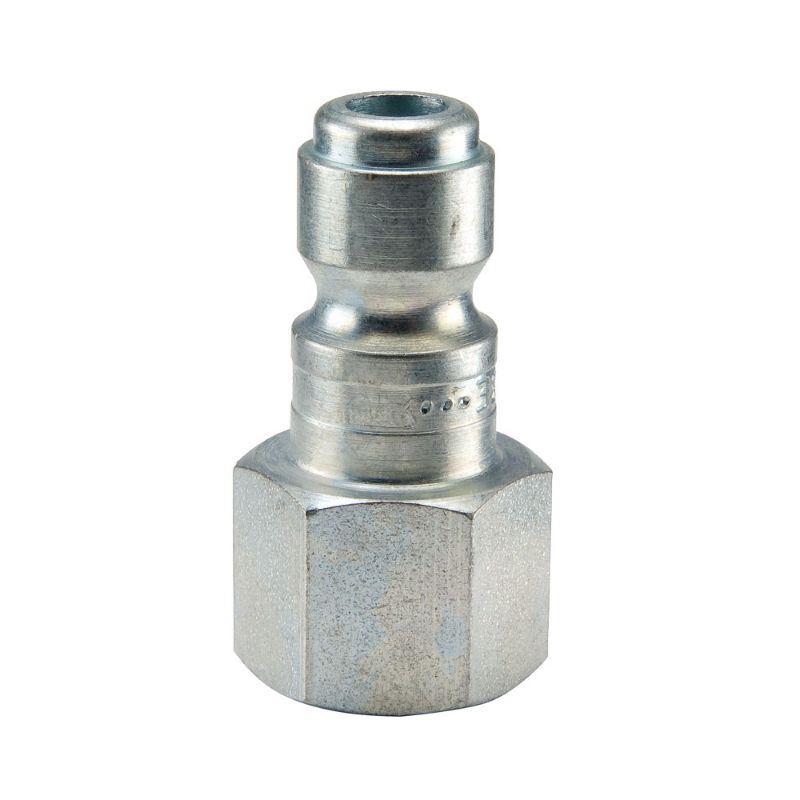

Parker 1C - Tru-Flate, Automotive Interchange Quick Connect Air Couplings - 10 Series

Parker's general purpose Tru-Flate pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1C

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Application	Pneumatic	Maximum Operating Temperature	250 °F
Hex Size	0.5 inch	Valve Type	Unvalved
Plating Type	Zinc with clear trivalent chromate	Product Type	Manual Connect
Interchange Type	Tru-Flate design	Dimensional Weight	0.006677158273381295 lb
Maximum Operating Pressure	300 psi	Body Material	Steel
Coupling Half	Male Nipple	Body Size (inch)	1/4
Hose I.D. (inch)	na	Connection Thread Size (inch)	1/8 - 27
Connection Type	Female NPTF

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
