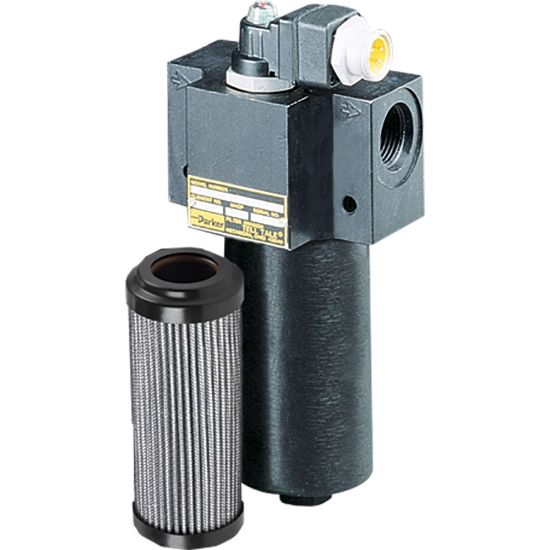

Parker 15P102QBE2SKX4 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 15P102QBE2SKX4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Product Type	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	Cartridge
Indicator Pressure Setting	3.5 bar	Bypass Valve Pressure Rating	3.5 bar
Maximum Operating Temperature	225.0 °F	Micron Rating	02Q Microglass
Product Style	Hydraulic Filter	Weight	3.5 lb ( 1.6 kg)
Options	SAE-4 drain port on bowl	Flow Rate	56.0 L/min
Port Type	manifold ports	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258
Indicator Type	electrical/visual DIN 43650 style connections-side mounted	Pressure Rating	3000 psi
Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6	Compatible Element	932610Q
Seal Material	Nitrile	Micron Rating	02Q Microglass
Options	SAE-4 drain port on bowl	Flow Rate	15 GPM ( 56 LPM)
Indicator Type	electrical/visual DIN 43650 style connections-side mounted	Mounting Style	inline
Port Connection Type	manifold ports
