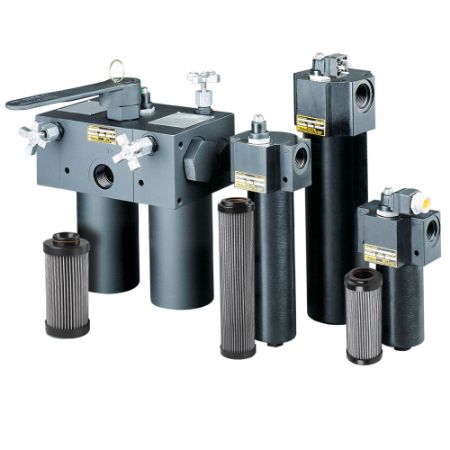

High Pressure Inline/Duplex Filter 15P/30P/30PD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Filter Series has a rated fatigue pressure of up to 2,000psi. With its high pressure capability and lightweight design, the 15P/30P Series is an ideal solution for mobile applications. Single and double length bowls are available to cover a wide range of flow rates up to 45gpm. The duplex option comes with a diverter valve to allow for element change out on critical applications where the system cannot be shut down. Various seal, indicator, and porting options make it easy for users to integrate the 15P/30P Series into their hydraulic system.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Seal Material | Product Type | Division | Options | Filter Element Type | Port Type | Indicator Pressure Setting | Bypass Valve Pressure Rating | Maximum Operating Temperature | Micron Rating | Product Style | Weight | Flow Rate | For Fluid Type | Indicator Type | Pressure Rating | Housing Material | Compatible Element | Seal Material | Options | Port Connection Type | Micron Rating | Indicator Type | Flow Rate | Mounting Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15P102QBM2KS121 | Quote Required | $566.03/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | None | Cartridge | SAE-12 ports | 3.5 bar | 3.5 bar | 107.0 °C | 02Q Microglass | Hydraulic Filter | 3.5 lb ( 1.6 kg) | 56.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | visual automatic reset | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932610Q | Nitrile | None | SAE-12 ports | 02Q Microglass | Visual automatic reset | 15 GPM ( 56 LPM) | inline | ||
| 15P102QHBM2KS121 | Quote Required | 4 In Stock | $657.67/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | None | Cartridge | SAE-12 ports | 50 psi | 3.5 bar | 225.0 °F | 02Q High Collapse Microglass (2000 psid) | Hydraulic Filter | 3.5 lb ( 1.6 kg) | 15.0 Gal/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | visual automatic reset | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932613Q | Nitrile | None | SAE-12 ports | 02Q high collapse microglass (2000 psid) | Visual automatic reset | 15 GPM ( 56 LPM) | inline | |
| 15P105QBE2KS124 | Quote Required | $715.08/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | SAE-4 drain port on bowl | Cartridge | SAE-12 ports | 3.5 bar | 3.5 bar | 107.0 °C | 05Q Microglass | Hydraulic Filter | 3.5 lb ( 1.6 kg) | 56.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | electrical/visual DIN 43650 style connection | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932611Q | Nitrile | SAE-4 drain port on bowl | SAE-12 ports | 05Q Microglass | electrical/visual DIN 43650 style connection | 15 GPM ( 56 LPM) | inline | ||
| 15P105QHBPSKX2 | Quote Required | $665.90/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | No bypass | Cartridge | manifold ports | 3.5 bar | 3.5 bar | 107.0 °C | 05Q High Collapse Microglass (2000 psid) | Hydraulic Filter | 3.5 lb ( 1.6 kg) | 56.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | indicator pressure port only-side mounted | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932614Q | Nitrile | No bypass | manifold ports | 05Q high collapse microglass (2000 psid) | indicator pressure port only-side mounted | 15 GPM ( 56 LPM) | inline | ||
| 15P110QBM2KS121 | Quote Required | $559.21/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | None | Cartridge | SAE-12 ports | 50 psi | 3.5 bar | 225.0 °F | 10Q Microglass | Hydraulic Filter | 3.5 lb ( 1.6 kg) | 15.0 Gal/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | none | 3000 psi | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932612Q | Nitrile | None | SAE-12 ports | 10Q Microglass | Visual automatic reset | 15 GPM ( 56 LPM) | inline | ||
| 15P110QHBM2KS122 | Quote Required | $650.85/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | No bypass | Cartridge | SAE-12 ports | 50 psi | 50.0 psid | 225.0 °F | 10Q High Collapse Microglass (2000 psid) | Hydraulic Filter | 3.5 lb ( 1.6 kg) | 56.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | visual automatic reset | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932615Q | Nitrile | No bypass | SAE-12 ports | 10Q high collapse microglass (2000 psid) | Visual automatic reset | 15 GPM ( 56 LPM) | inline | ||
| 15P110QHBPKS122 | Quote Required | $596.17/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | No bypass | Cartridge | SAE-12 ports | 50 psi | 50.0 psid | 225.0 °F | 10Q High Collapse Microglass (2000 psid) | Hydraulic Filter | 3.5 lb ( 1.6 kg) | 56.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | indicator pressure port only | 3000 psi | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932615Q | Nitrile | No bypass | SAE-12 ports | 10Q high collapse microglass (2000 psid) | indicator pressure port only | 15 GPM ( 56 LPM) | inline | ||
| 15P110QVM2KS124 | Quote Required | $653.55/each | EA | Fluorocarbon | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | SAE-4 drain port on bowl | Cartridge | SAE-12 ports | 3.5 bar | 3.5 bar | 275.0 °F | 10Q Microglass | Hydraulic Filter | 3.5 lb ( 1.6 kg) | 56.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | visual automatic reset | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932612Q | Fluorocarbon | SAE-4 drain port on bowl | SAE-12 ports | 10Q Microglass | Visual automatic reset | 15 GPM ( 56 LPM) | inline | ||
| 15P110QXBPSKX2 | Quote Required | $772.52/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | No bypass | Cartridge | manifold ports | 3.5 bar | 50.0 psid | 225.0 °F | 10Q High Collapse Microglass (3000 psid) | Hydraulic Filter | 3.5 lb ( 1.6 kg) | 56.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | indicator pressure port only-side mounted | 3000 psi | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 933577Q | Nitrile | No bypass | manifold ports | 10Q high collapse microglass (3000 psid) | indicator pressure port only-side mounted | 15 GPM ( 56 LPM) | inline | ||
| 15P120QBM2KS121 | Quote Required | $559.21/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | None | Cartridge | SAE-12 ports | 3.5 bar | 3.5 bar | 107.0 °C | 20Q Microglass | Hydraulic Filter | 3.5 lb ( 1.6 kg) | 56.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | visual automatic reset | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 930369Q | Nitrile | None | SAE-12 ports | 20Q Microglass | Visual automatic reset | 15 GPM ( 56 LPM) | inline | ||
| 15P120QBPSKS121 | Quote Required | $504.53/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | None | Cartridge | SAE-12 ports | 3.5 bar | 3.5 bar | 107.0 °C | 20Q Microglass | Hydraulic Filter | 3.5 lb ( 1.6 kg) | 56.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | indicator pressure port only-side mounted | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 930369Q | Nitrile | None | SAE-12 ports | 20Q Microglass | indicator pressure port only-side mounted | 15 GPM ( 56 LPM) | inline | ||
| 15P205QBM2KS121 | Quote Required | $615.05/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | None | Cartridge | SAE-12 ports | 50 psi | 3.5 bar | 107.0 °C | 05Q Microglass | Hydraulic Filter | 4.6 lb ( 2.1 kg) | 20.0 Gal/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | visual automatic reset | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 931617Q | Nitrile | None | SAE-12 ports | 05Q Microglass | Visual automatic reset | 20 GPM (75 LPM) | inline | ||
| 15P205QBM2KS124 | Quote Required | $656.07/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | SAE-4 drain port on bowl | Cartridge | SAE-12 ports | 3.5 bar | 3.5 bar | 107.0 °C | 05Q Microglass | Hydraulic Filter | 4.6 lb ( 2.1 kg) | 20.0 Gal/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | visual automatic reset | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 931617Q | Nitrile | SAE-4 drain port on bowl | SAE-12 ports | 05Q Microglass | Visual automatic reset | 20 GPM (75 LPM) | inline | ||
| 15P205QHBM2KS122 | Quote Required | $751.11/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | No bypass | Cartridge | SAE-12 ports | 3.5 bar | 3.5 bar | 107.0 °C | 05Q High Collapse Microglass (2000 psid) | Hydraulic Filter | 4.6 lb ( 2.1 kg) | 20.0 Gal/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | visual automatic reset | 3000 psi | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932620Q | Nitrile | No bypass | SAE-12 ports | 05Q high collapse microglass (2000 psid) | Visual automatic reset | 20 GPM (75 LPM) | inline | ||
| 15P210QBM2KS121 | Quote Required | $609.65/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | None | Cartridge | SAE-12 ports | 3.5 bar | 3.5 bar | 225.0 °F | 10Q Microglass | Hydraulic Filter | 4.6 lb ( 2.1 kg) | 75.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | visual automatic reset | 3000 psi | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932618Q | Nitrile | None | SAE-12 ports | 10Q Microglass | Visual automatic reset | 20 GPM (75 LPM) | inline | ||
| 15P210QBPKS121 | Quote Required | $554.97/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | None | Cartridge | SAE-12 ports | 50 psi | 3.5 bar | 107.0 °C | 10Q Microglass | Hydraulic Filter | 4.6 lb ( 2.1 kg) | 75.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | indicator pressure port only | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932618Q | Nitrile | None | SAE-12 ports | 10Q Microglass | indicator pressure port only | 20 GPM (75 LPM) | inline | ||
| 15P210QVM2KS121 | Quote Required | $662.97/each | EA | Fluorocarbon | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | None | Cartridge | SAE-12 ports | 50 psi | 3.5 bar | 135.0 °C | 10Q Microglass | Hydraulic Filter | 4.6 lb ( 2.1 kg) | 20.0 Gal/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | visual automatic reset | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932618Q | Fluorocarbon | None | SAE-12 ports | 10Q Microglass | Visual automatic reset | 20 GPM (75 LPM) | inline | ||
| 15P210QXBE2KS122 | Quote Required | $961.55/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | No bypass | Cartridge | SAE-12 ports | 3.5 bar | 50.0 psid | 107.0 °C | 10Q High Collapse Microglass (3000 psid) | Hydraulic Filter | 4.6 lb ( 2.1 kg) | 75.0 L/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | electrical/visual DIN 43650 style connection | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 933579Q | Nitrile | No bypass | SAE-12 ports | 10Q high collapse microglass (3000 psid) | electrical/visual DIN 43650 style connection | 20 GPM (75 LPM) | inline | ||
| 15P210QXVPSKX2 | Quote Required | $915.07/each | EA | Fluorocarbon | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | No bypass | Cartridge | manifold ports | 50 psi | 50.0 psid | 135.0 °C | 10Q High Collapse Microglass (3000 psid) | Hydraulic Filter | 4.6 lb ( 2.1 kg) | 20.0 Gal/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | indicator pressure port only-side mounted | 3000 psi | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 933579Q | Fluorocarbon | No bypass | manifold ports | 10Q high collapse microglass (3000 psid) | indicator pressure port only-side mounted | 20 GPM (75 LPM) | inline | ||
| 30P102QBM2KS161 | Quote Required | $721.20/each | EA | Nitrile | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | None | Cartridge | SAE-16 ports | 50 psi | 3.5 bar | 225.0 °F | 02Q Microglass | Hydraulic Filter | 6.4 lb (2.9 kg) | 45.0 Gal/min | Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258 | visual automatic reset | 206.9 bar | bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6 | 932622Q | Nitrile | None | SAE-16 ports | 02Q Microglass | Visual automatic reset | 45 GPM (170 LPM) | inline |
