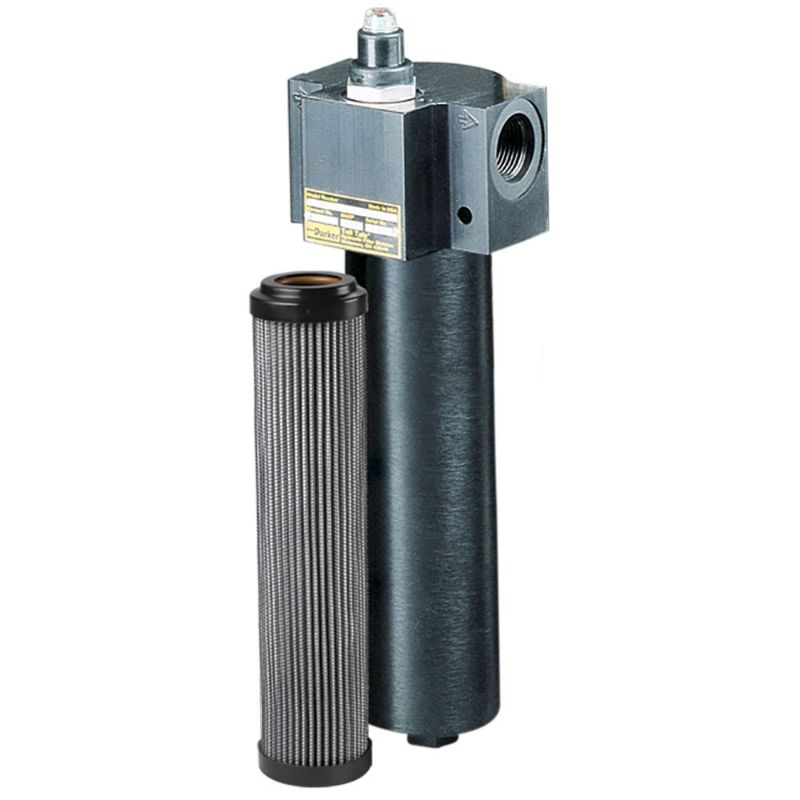

Parker 15P205QHBM2KS122 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 15P205QHBM2KS122

$751.11/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Pressure Rating	3000 psi	Maximum Operating Temperature	107.0 °C
Filter Element Type	cartridge	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258
Options	no bypass	Indicator Pressure Setting	3.5 bar
Indicator Type	visual automatic reset	Product Style	Hydraulic Filter
Bypass Valve Pressure Rating	3.5 bar	Micron Rating	05Q High Collapse Microglass (2000 psid)
Flow Rate	20.0 Gal/min	Port Type	SAE-12 ports
Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6	Product Type	Hydraulic Filter
Compatible Element	932620Q	Weight	4.6 lb ( 2.1 kg)
Seal Material	nitrile	Seal Material	Nitrile
Port Connection Type	SAE-12 ports	Options	No bypass
Indicator Type	Visual automatic reset	Mounting Style	inline
Flow Rate	20 GPM (75 LPM)	Micron Rating	05Q high collapse microglass (2000 psid)
