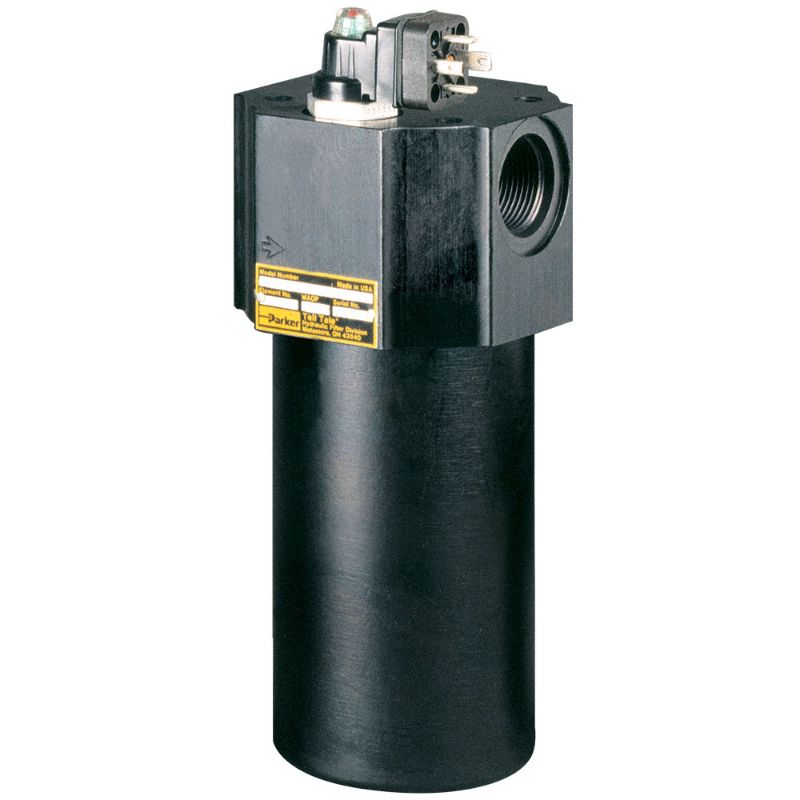

Parker 30P102QBM2KS161 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30P102QBM2KS161

$703.61

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Product Type	Hydraulic Filter	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Options	None	Filter Element Type	Cartridge
Bypass Valve Pressure Rating	3.5 bar	Maximum Operating Temperature	225.0 °F
Micron Rating	02Q Microglass	Product Style	Hydraulic Filter
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258	Indicator Type	visual automatic reset
Pressure Rating	206.9 bar	Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6
Indicator Pressure Setting	50 psi	Weight	6.4 lb (2.9 kg)
Flow Rate	45.0 Gal/min	Port Type	SAE-16 ports
Compatible Element	932622Q	Seal Material	Nitrile
Options	None	Micron Rating	02Q Microglass
Indicator Type	Visual automatic reset	Mounting Style	inline
Flow Rate	45 GPM (170 LPM)	Port Connection Type	SAE-16 ports
