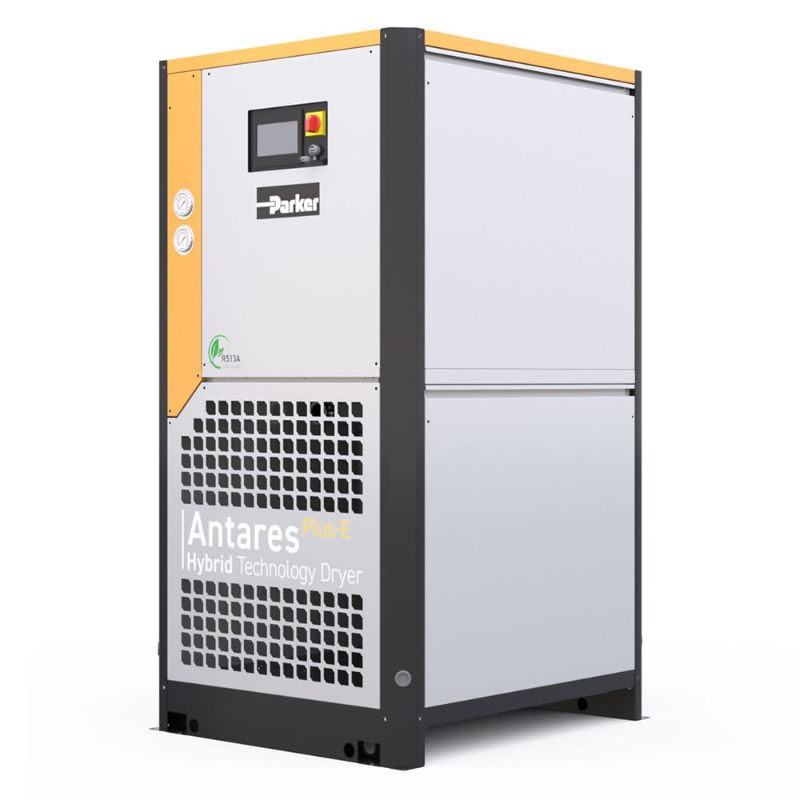

Parker ATT060+A23015012EITSTB - Antares Plus-E Green Hybrid Technology Low Energy Compressed Air Dryer

Green, low energy Hybrid Technology dryers for compressed air applications in industrial and processing markets. Providing volume flows up to 2040 m³/h @ 7 bar g at a dew point of -40°C (-20°C and -70°C options available).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ATT060+A23015012EITSTB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Technology	Filtration
Division	Gas Separation and Filtration Division EMEA	Division	Gas Separation and Filtration Division EMEA
Port Size	1-1/2 inch	Connection Type	BSPP
Specifications Met	PED 2014/68/EU Fluid Group II	Industry	Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals<br/>Medical & Dental
ISO Grade	Standard: Class 2.2.2<br/>Options: Class 2.1.2 or Class 2.3.2	Application	Compressed Air Applications
Noise Level	< 75 dBA	Product Type	Compressed Air Dryer
Operating Pressure	2 to 12 barg	Pressure Dew Point	Options: -70°C (-100°F) or -20°C (-4°F)
Ambient Temperature	122.0 °F Maximum	Compatible Prefilter	OIL-X AOPX030G and AAPX030G (Included)
Operating Temperature	5 to 65 °C	Compatible After Filter	OIL-X AOPX030G (Included)
Ingress Protection Rating	IP44 Indoor Use Only	Refrigerant Type	R513A
Width	973.0 mm	Height	1900.0 mm
Weight	380 kg	Depth	1312.0 mm
Product Style	Hybrid Low Energy	Product Series	Antares Plus-E
Power Consumption	1.9 kW	Options	Bypass
Flow Rate	360 m³/h @7 barg (240 cfm @102 psig)	Electrical Requirements	230V 1ph 50Hz
