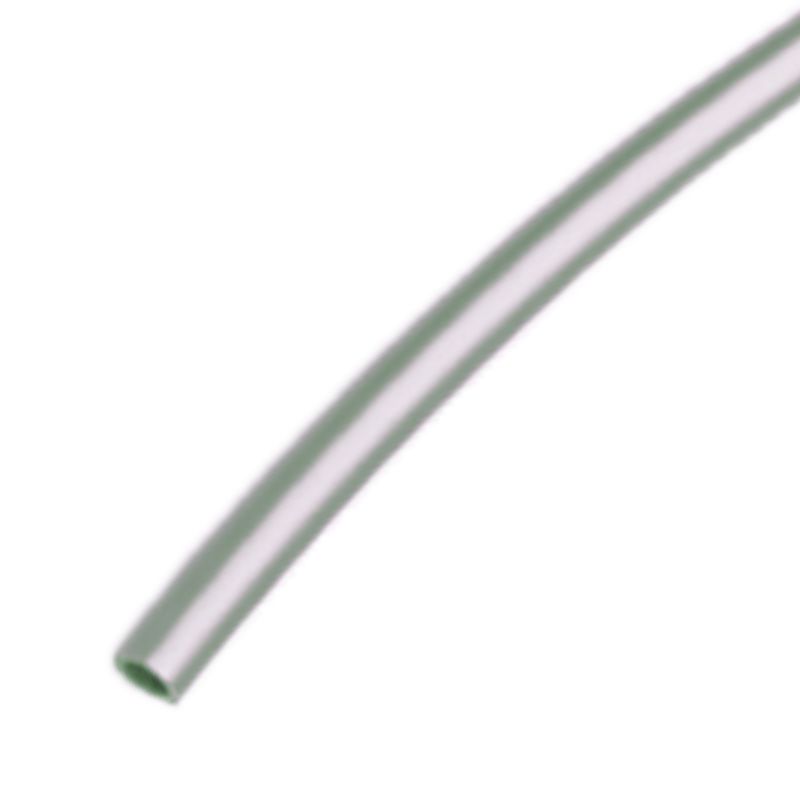

Parker 1120-4A-SIL-1000 - Nylon Air Brake Tubing

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1120-4A-SIL-1000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Minimum Operating Temperature	-40 °F
Division	Parflex Division	Size	-4
Cover Material	n/a	Tube Outside Diameter	0.25 inch
Tube Inside Diameter	0.17 inch	Cover Color	n/a
Application	Air Brake	Color	Silver
Weight	0.012 lb/ft	Tube Material	Polyamide (PA)
Compatible Fitting	NTA®	Specifications Met	SAE J844
Minimum Bend Radius	25.4 mm	Minimum Burst Pressure	82.7 bar
Maximum Operating Pressure	10.3 bar	Maximum Operating Temperature	93 °C
Tube O.D. (inch)	1/4	Standard Pack Qty (ft)	1000
Color	Silver
