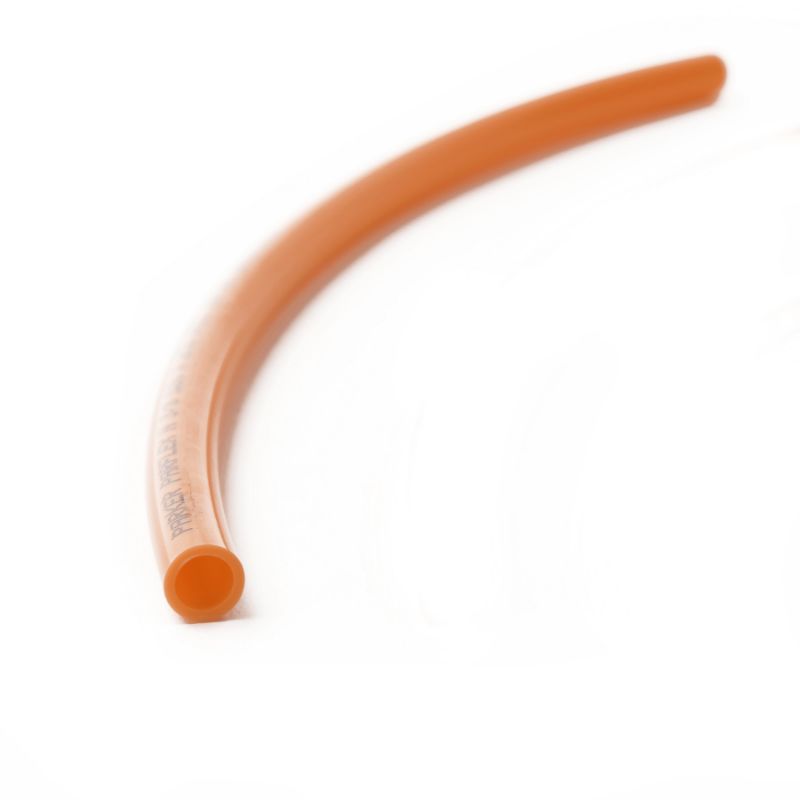

Parker 1120-10B-ORG-250 - Nylon Air Brake Tubing

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1120-10B-ORG-250

$0.49

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Media	Air
Minimum Operating Temperature	-40 °F	Division	Parflex Division
Tube Outside Diameter	15.9 mm	Maximum Operating Pressure	150 psi
Application	Air Brake	Size	-10
Color	Orange	Weight	0.104 kg/m
Cover Color	Orange	Product Type	Reinforced
Tube Material	Polyamide (PA) Fiber Reinforcement	Cover Material	Polyamide (PA)
Compatible Fitting	Prestomatic	Specifications Met	SAE J844
Minimum Bend Radius	63.5 mm	Tube Inside Diameter	0.441 inch
Minimum Burst Pressure	62.1 bar	Maximum Operating Temperature	93 °C
Tube O.D. (inch)	5/8	Color	Orange
Standard Pack Qty (ft)	250
