*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

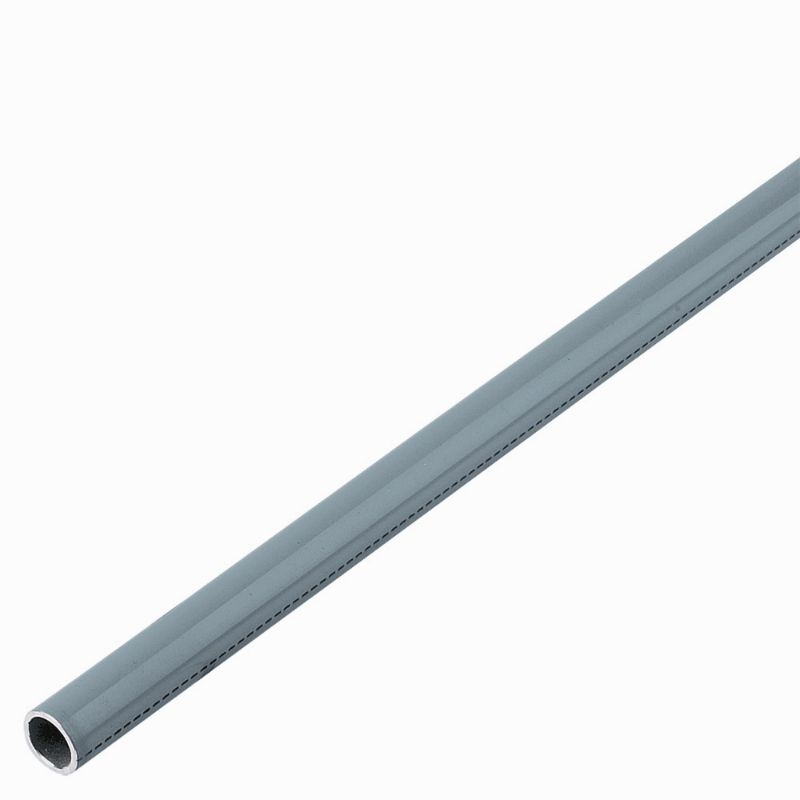

Parker 1003A40 06 00 - Transair® Aluminum Pipe

Transair Rigid Aluminum Pipe delivers superior performance for compressed air, vacuum, and industrial/inert gas applications. The aluminum construction prevents corrosion build-up and deterioration of the pipe over time.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1003A40 06 00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Transair	Division	Low Pressure Connectors Europe Division
Shape	Straight	Minimum Operating Temperature	-20 °C
Industry	General Industrial	Technology	Fluid & Gas Handling
Division	Low Pressure Connectors Europe Division	Application	Industrial Gas
Color	Gray	Length	3 m
Weight	1,48 kg	Product Type	Rigid Aluminum Pipe
Assembly Time	0.05 Hours	Body Material	Treated Aluminum
Configuration	Pipe to Pipe	Outside Diameter	1-1/2 inch
Quantity per Box	6	Specifications Met	EN 573.3
Vacuum Pressure Rating	0.03 inch-Hg	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca
Maximum Operating Temperature	185 °F	Size	40 mm
For Fluid Type	Air	Connection 1 Type	Pipe
Length (m)	3	Length (ft)	10
Pipe O.D. (mm)	40	Pipe O.D. (inch)	1-1/2
Color	Gray

Product resources

Compliance, Certifications & Safety

Transair Regulations & Certifications (PDF)

Literature and Reference Materials
