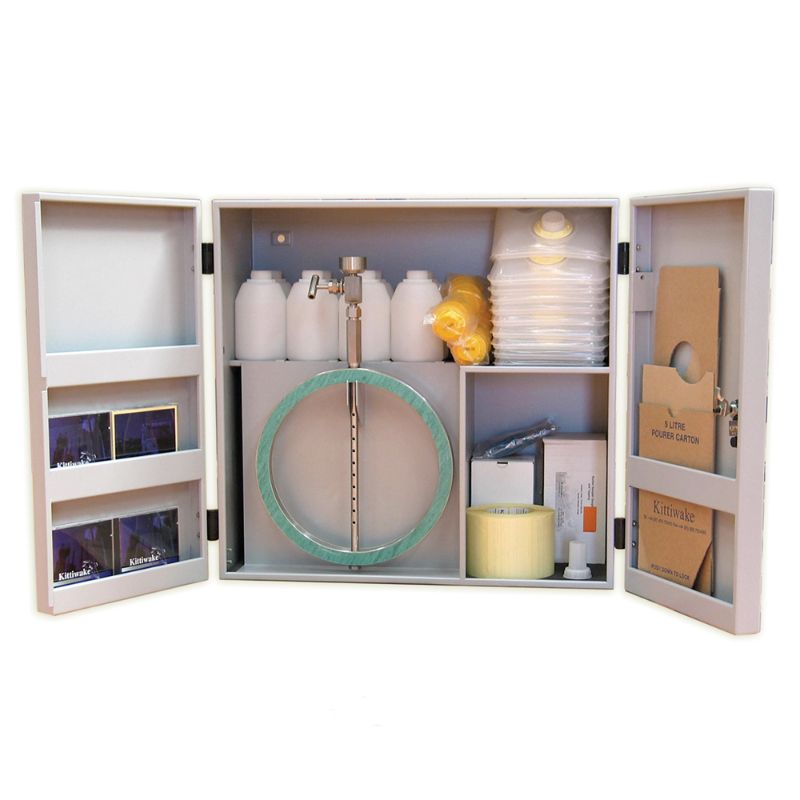

Parker FG-K16091-KW - Fuel Drip Bunker Samplers

Parker bunker samplers are designed to provide a representative sample of the entire fuel delivery. Manufactured from stainless steel.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FG-K16091-KW

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Technology	Hydraulics	Sensor Connection	n/a
Electrical Requirements	n/a	Accessories Included	Sample containers, anti-tamper locks, bottle seals and labels available separately
Connection Type	Multiple line diameter versions from 50 mm to 350 mm	Sensing Method	n/a
Options	Wide range of line diameters: 50 mm (2") up to 300 mm (12") in 25 mm (1")	Product Type	Sampling System
Weight	3 to 12	Signal Output	n/a
Brand	Kittiwake	Cycle Time	n/a
Accuracy	n/a	Communication Interface	n/a
Operating Pressure	580 psi	Wetted Material	Stainless steel, PTFE, non-asbestos grade Y gasket (aramid/glass fibres and nitrile rubber)
Division	Hydraulic & Industrial Process Filtration Division EMEA	Size	515 to 840 x 31.5 x 95 to 401 mm (Height x Width x Diameter)
Division	Hydraulic & Industrial Process Filtration Division EMEA	Flow Rate	n/a
Operating Temperature	-50 to 75 °C	Sensing Range	n/a
Industry	Marine	Ingress Protection Rating	N/A
Features	Simple and effective continuous fuel sampling for the entire delivery as ISO 13739<br/>ASTM D 4057: 2000 Standard practice for manual sampling of petroleum and petroleum products	For Fluid Type	Lube Oil Fuel
Product Style	Bunker Sample Storage System	Quantity per Box	1
