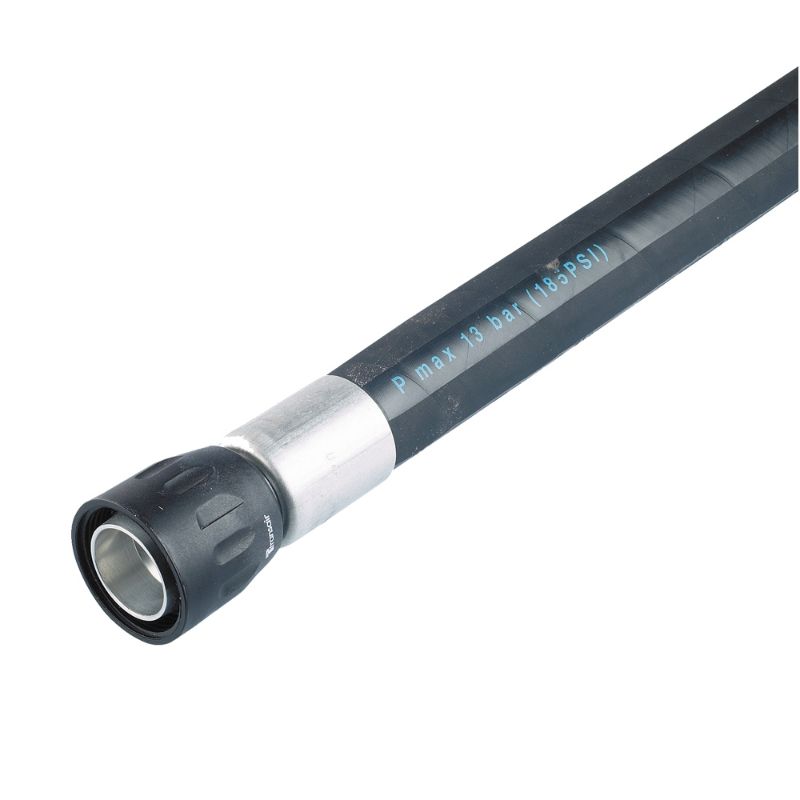

Parker 1001E25 00 01 - Transair® Flexible Hose for Aluminum Pipe

Transair Flexible Hoses are designed to install quickly in areas where space is at a premium. These hoses are used to route compressed air line around obstacles, preventing pressure drop caused by excess elbows.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1001E25 00 01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Low Pressure Connectors Europe Division
Minimum Operating Temperature	-20 °C	Industry	General Industrial
Technology	Fluid & Gas Handling	Application	In Plant Pneumatic
Division	Low Pressure Connectors Europe Division	Quantity per Box	1.0
Connection Type	Male Thread	Color	Black
Shape	Straigth	Length	1' 10'' ft
Weight	0,794 kg	Flow Rate	n/a
Product Type	Pneumatic Hose	Assembly Time	0.04 Hours
Body Material	SBR (Hose & Coating)	Configuration	Port to Port
Product Style	Hose Assemblies	Connection Size	25 mm
Inside Diameter	25 mm	Outside Diameter	1 inch
Specifications Met	ISO 8573 (Air Quality)	Minimum Bend Radius	100 mm
Vacuum Pressure Rating	n/a Please consult us	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html
Maximum Operating Temperature	140 °F	Length (m)	0.57
Length (ft)	1ft 10in	Pipe O.D. (mm)	25
Pipe O.D. (inch)	1
