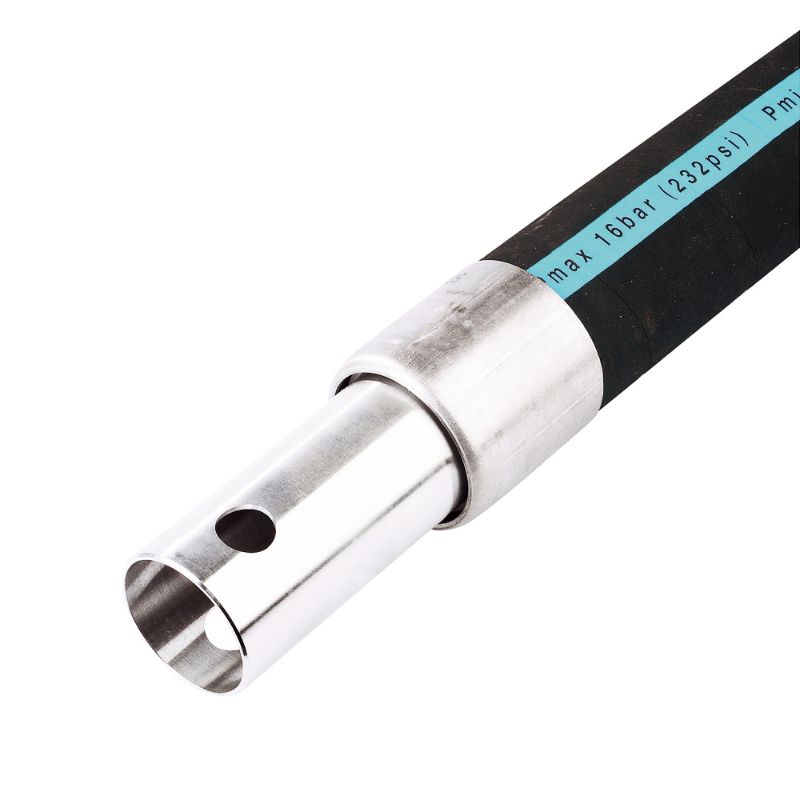

Parker 1001E63 00 05 - Transair® Flexible Hose for Aluminum Pipe

Transair Flexible Hoses are designed to install quickly in areas where space is at a premium. These hoses are used to route compressed air line around obstacles, preventing pressure drop caused by excess elbows.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1001E63 00 05

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Fluid System Connectors Division
Minimum Operating Temperature	-20 °C	Industry	General Industrial
Technology	Fluid & Gas Handling	Application	In Plant Pneumatic
Division	Fluid System Connectors Division	Quantity per Box	1.0
Connection Type	Pipe	Color	Black
Shape	Straigth	Length	9' 10'' ft
Weight	7,500 kg	Flow Rate	n/a
Product Type	Pneumatic Hose	Assembly Time	0.1 Hours
Body Material	Spiral Steel Wire (Reinforcement)	Configuration	Pipe to Pipe
Product Style	Hose Assemblies	Connection Size	63 mm
Inside Diameter	50 mm	Outside Diameter	63 mm
Specifications Met	CE	Minimum Bend Radius	26,000 inch
Vacuum Pressure Rating	n/a Please consult us	Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html
Maximum Operating Temperature	60 °C	Length (m)	3.00
Length (ft)	9ft 10in	Pipe O.D. (mm)	63
Pipe O.D. (inch)	2-1/2
