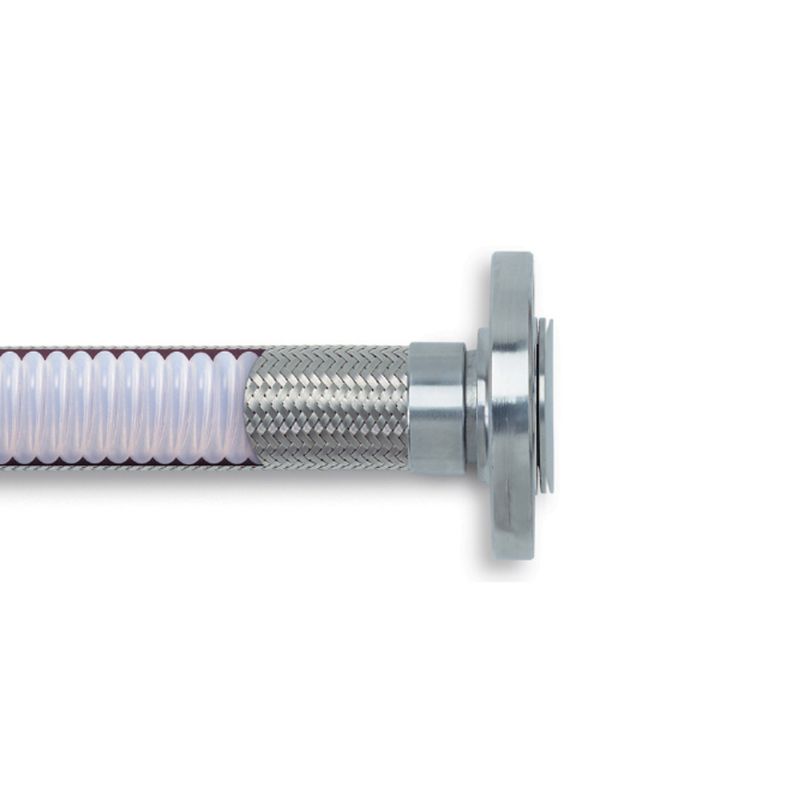

Picture of Parker 08-SCW - Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 08-SCW - Convoluted PTFE Hose with 304 Stainless Steel Braid - SCW/SCB

Parker SCW and SCB hoses are seamless, low profile, environmentally safe, self-draining and able to withstand extreme flexing. They are suitable for fluid handling, chemical transfer, paint and semiconductor applications.
AFP Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 08-SCW
$30.37/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTMinimum Bend Radius38 mm
Hose Reinforcement MaterialBraid of 304 Stainless SteelSpecifications MetFDA (Core Tube)
ApplicationFluid HandlingMinimum Operating Temperature-100 °F
Cover Materialn/aInside Diameter13 mm
Outside Diameter19.3 mmMaximum Operating Pressure104 bar
Weight0.23 kg/mDivisionParflex Division
Maximum Operating Temperature500 °FVacuum Pressure Rating711.2 mm-Hg
Design Factor4:1Size-8
Compatible FittingPAGE SeriesHose Inner Tube MaterialPolytetrafluoroethylene (PTFE)
MediaIndustrial FluidsHose StyleNatural
Hose I.D. (inch)1/2
