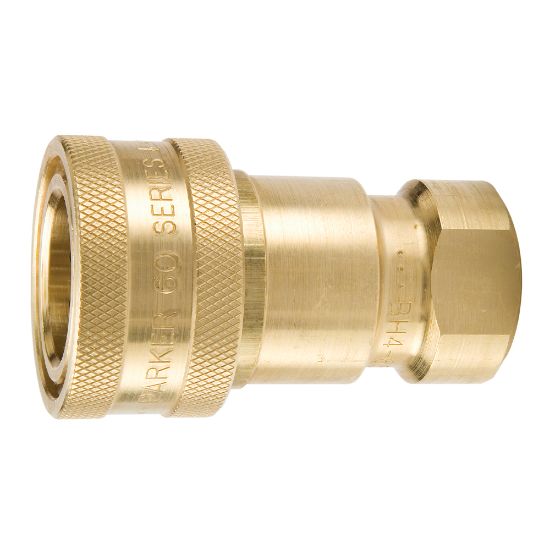

Parker BH6-60-STM - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. BH6-60-STM

$209.61/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	106 L/min
Product Type	Manual Connect	Specifications Met	ISO 7241-1, series B
Valve Material	Brass	Valve Type	Poppet
Vacuum Pressure Rating	-0.9 bar	Division	Quick Coupling Division
Maximum Operating Temperature	204 °C	Ball Material	Stainless steel
Hex Size	1.31 inch	Body Material	Brass
Minimum Operating Temperature	-54 °C	Plating Type	na
Connection Type	Female NPTF	Body Material	BRASS
Seal Material	Ethylene Propylene	Maximum Operating Pressure	2200
Connection Thread Size (inch)	3/4 - 14	Coupling Half	Female Coupler
Body Size (inch)	3/4	Application	Steam
