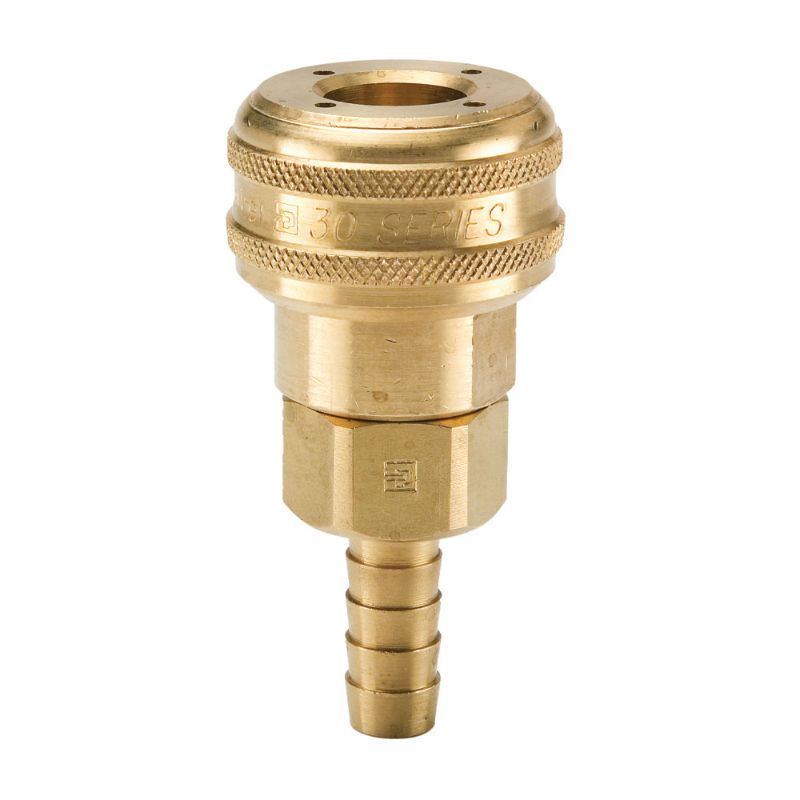

Parker B36-7B - Industrial Interchange, Push to Connect, Quick Connect Air Couplers - 30 Series

Parker's general purpose quick connect air couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	7 In Stock

Brand Parker

Part No. B36-7B

$110.22

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Type	Tubular
Media	Low pressure fluids and compressed air	Dimensional Weight	0.11472571942446043 lb
Coupling Half	Coupler	Division	Quick Coupling Division
Application	Air	Minimum Operating Temperature	-40 °F
Lock Type	Pawls	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B	Sleeve Type	Push to Connect
Body Material	Brass	Connection Thread Size (inch)	na
Thread Style	na	Connection Hose I.D. (inch)	3/4
Body Size (inch)	1/2	Body Material	BRASS
Connection Type	Hose barb
