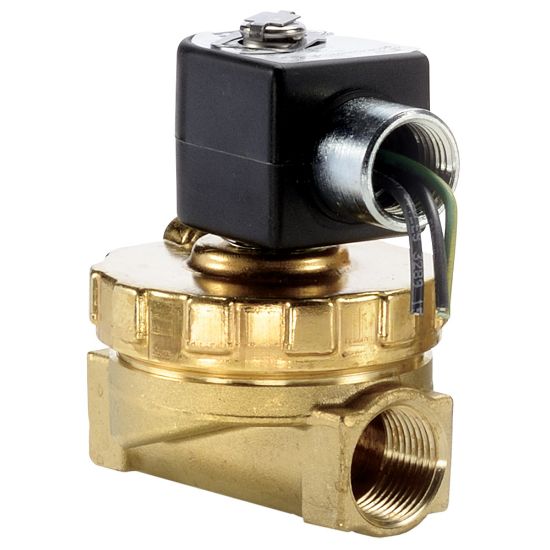

Parker 06F25CL332ACH4C05 - 25 & S5 Series - Water, Hot Water, & Steam Valves

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 06F25CL332ACH4C05

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	3/8	Port Type	NPT
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	2-Way	Seal Material	EPDM
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Media	Hot Water
Installation	IOM 7320	Orifice Size	3/8
Body Material	Lead-Free Brass	Input Voltage	110/50
Actuation Type	Internal Pilot	Power Consumption	11
Specifications Met	UL	Main Flow Coefficient	3.0
Ingress Protection Rating	NEMA 4X	Maximum Fluid Temperature	216
Preventive Maintenance Kit	06F25CL332ACHR	Maximum Ambient Temperature	167
Maximum Pressure Differential	235	Minimum Pressure Differential	1.0
Maximum Steam Pressure	-	Port Type	NPT
Seal Material	EPDM	Port Size	3/8
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Function	Normally Closed
Input Voltage	120/60, 110/50	Actuation Type	Internally Piloted
Power Consumption	11.0	Main Flow Coefficient	3.0
Ingress Protection Rating	NEMA 4,4X	Media	Water, Hot Water
Installation	IOM 7320	Orifice Size	3/8
Body Material	Lead-Free Brass	Specifications Met	UL, CSA Listed General Purpose Valve; SDWA Section 1417(d) brass; CE - Low Voltage, EMC
Maximum Fluid Temperature	216.0	Preventive Maintenance Kit	06F25CL332ACHR
Maximum Ambient Temperature	167.0	Maximum Pressure Differential	235.0
Minimum Pressure Differential	1.0	Valve Type	2 Way
Maximum Steam Pressure	-
